HGV DISPLAY
HGV ENERGY-SAVING TECHNOLOGY
High Brightness and low energy-consumption, it can increase 20% brightness or decrease 20%consumption for better hear dissipation and better contrast.
Indoor LED Displays

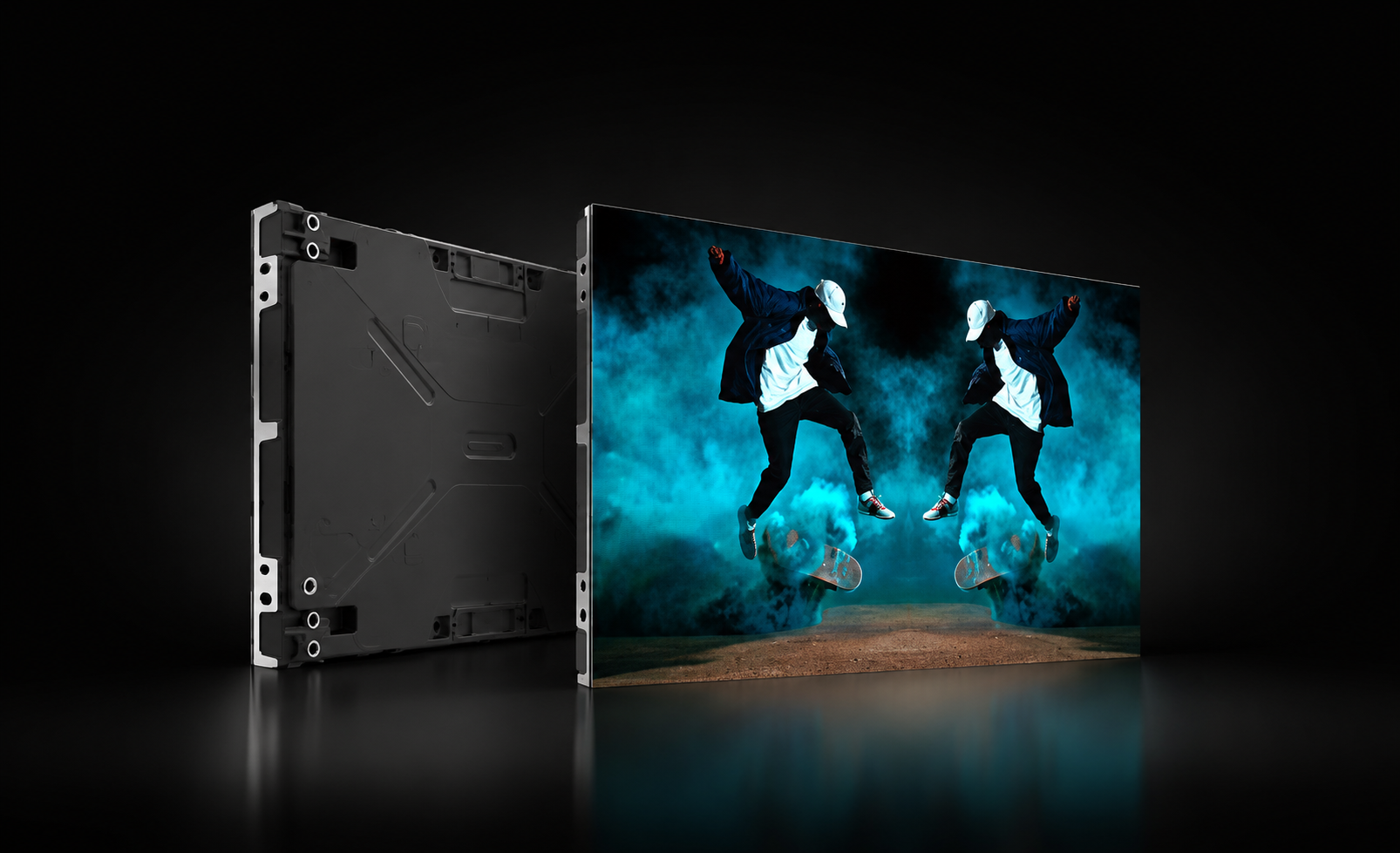

Indoor Fine Pixel Pitch LED
Product Description: No Shell Module Design Inky consistent, high Smoothness, wide angle High heat dissipation, Strong-strength magnets, Fire-proof material
Product advantages
Key Features
02
HGV DISPLAY
Dual Backup
Dual redundant power supplies and Receiving Card in each panel. If one power supply or card fails, the other can ensure normal working of panel.
03
HGV DISPLAY
Wireless Connections
No cables between cabinets and no apparent cables outside the cabinet. Inner cable connection will make the transmission of signal and power more table, and the whole will look more neat and simple.
APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01

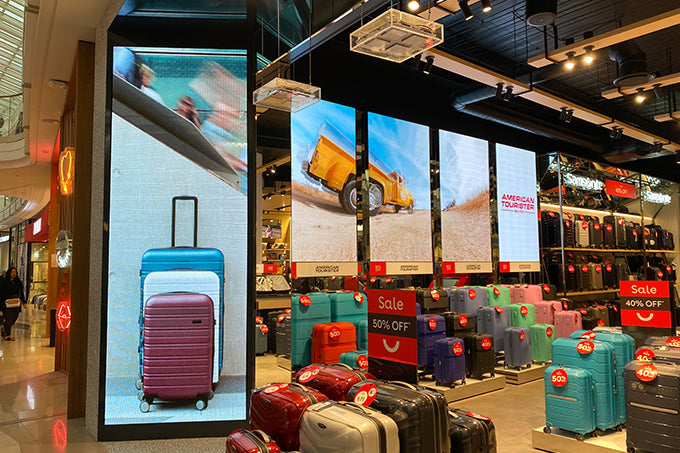

Conference Rooms
Ideal for meeting rooms, conference centers and corporate environments.
02

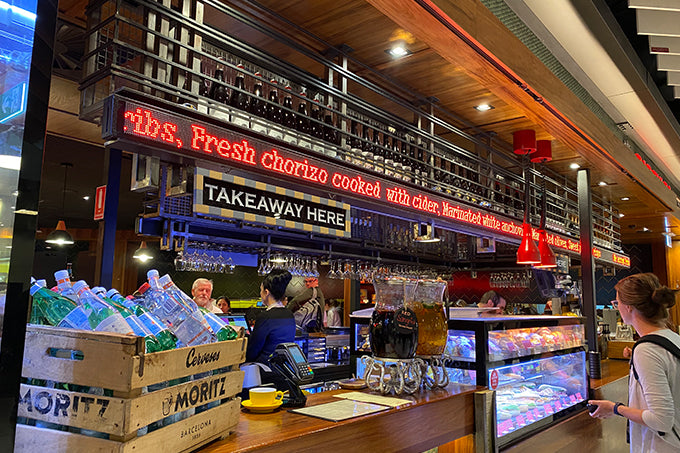

Retail Stores
Perfect for shopping malls and retail advertising.
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
1.56mm
Brightness（亮度）
600 nits
Refresh Rate（刷新率）
≥3840 Hz
Viewing Angle（可视角度）
Horizontal 150° / Vertical 150°
Cabinet Size（箱体尺寸）
600 × 337.5 × 22.5 mm
Cabinet Material（箱体材质）
Die-cast Aluminum
Cabinet Weight（箱体重量）
5.6 kg
IP Rating（防护等级）
IP31
Power Consumption（功耗）
Max ≤1000W/㎡ Avg ≤350W/㎡
Input Voltage（输入电压）
AC110V/220V ±10%
Lifetime（使用寿命）
≥100000 Hours
Certification（产品认证）
CE, FCC, RoHS
Warranty（保修）
3 Years
PRODUCT RESOURCES
Download Center
Download product specifications, manuals and technical resources.
DATASHEET
Product Specification Sheet
Complete technical specifications and product information.
