01

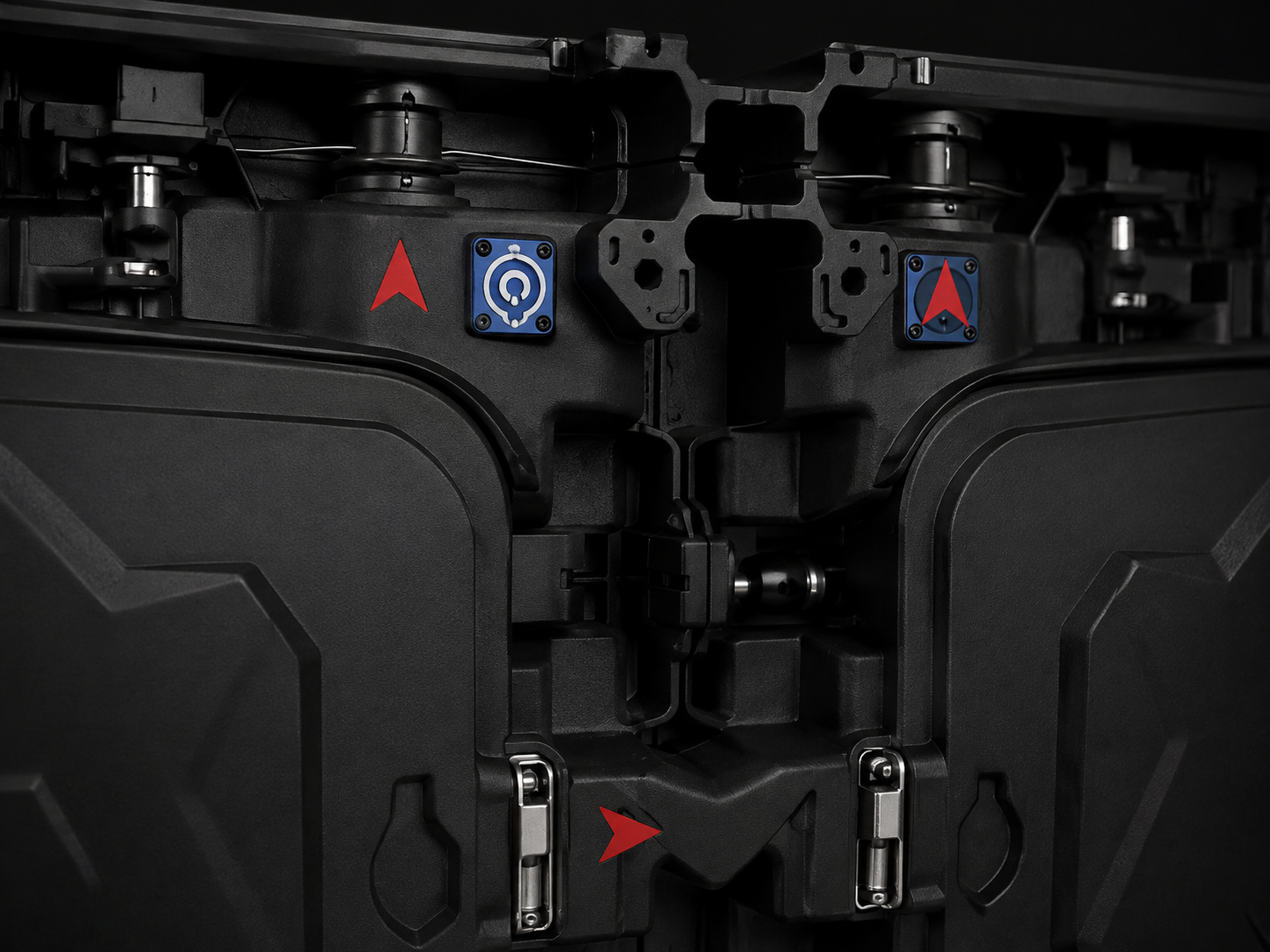

Power connector
With signal and power connector, easy to interconnect
Outdoor LED Displays

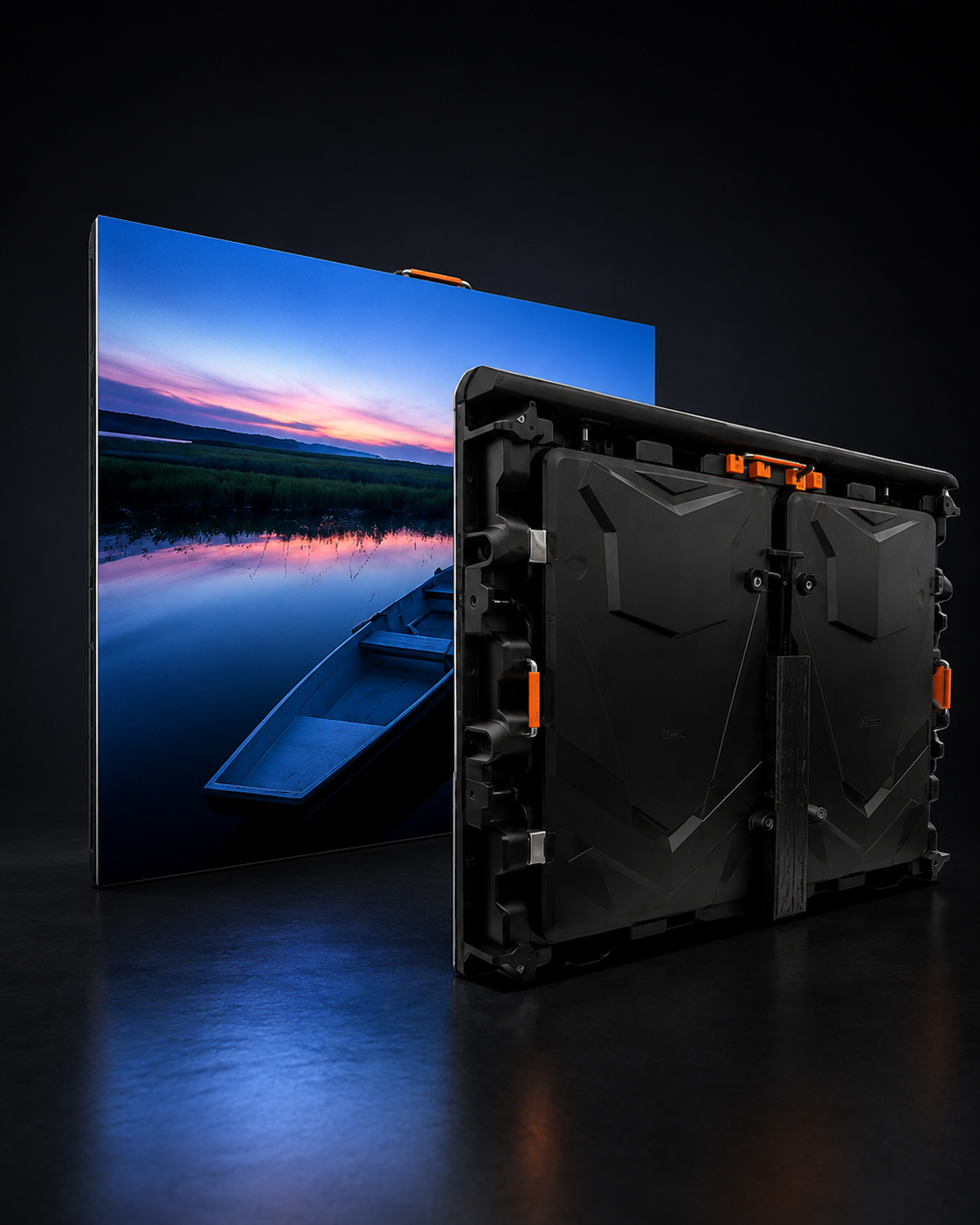

Outdoor Fixed LED Display QS series
Product Description: Compatible with P2.5,P3,P4,P5,P8,P10,easyfor screen upgrades Ultrathin, lightweight, and highly stable aluminum die casting structure Quick installation in 12 seconds
Product advantages
Key Features
02

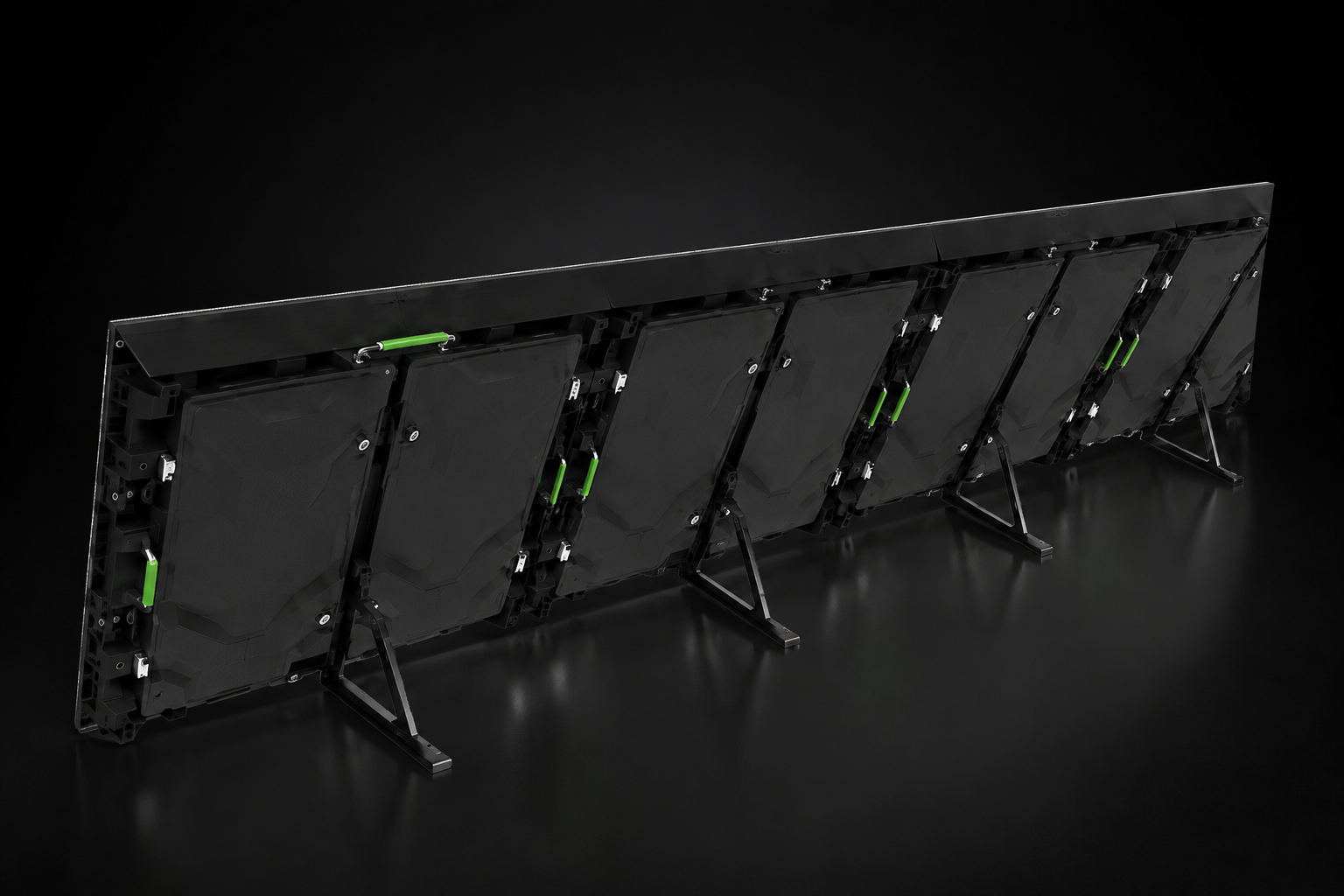

Seamless with good alignment
Product is high brightness, high refresh rate, high IP rating, applicable for both indoor and outdoor sports stadium in different countries;
03

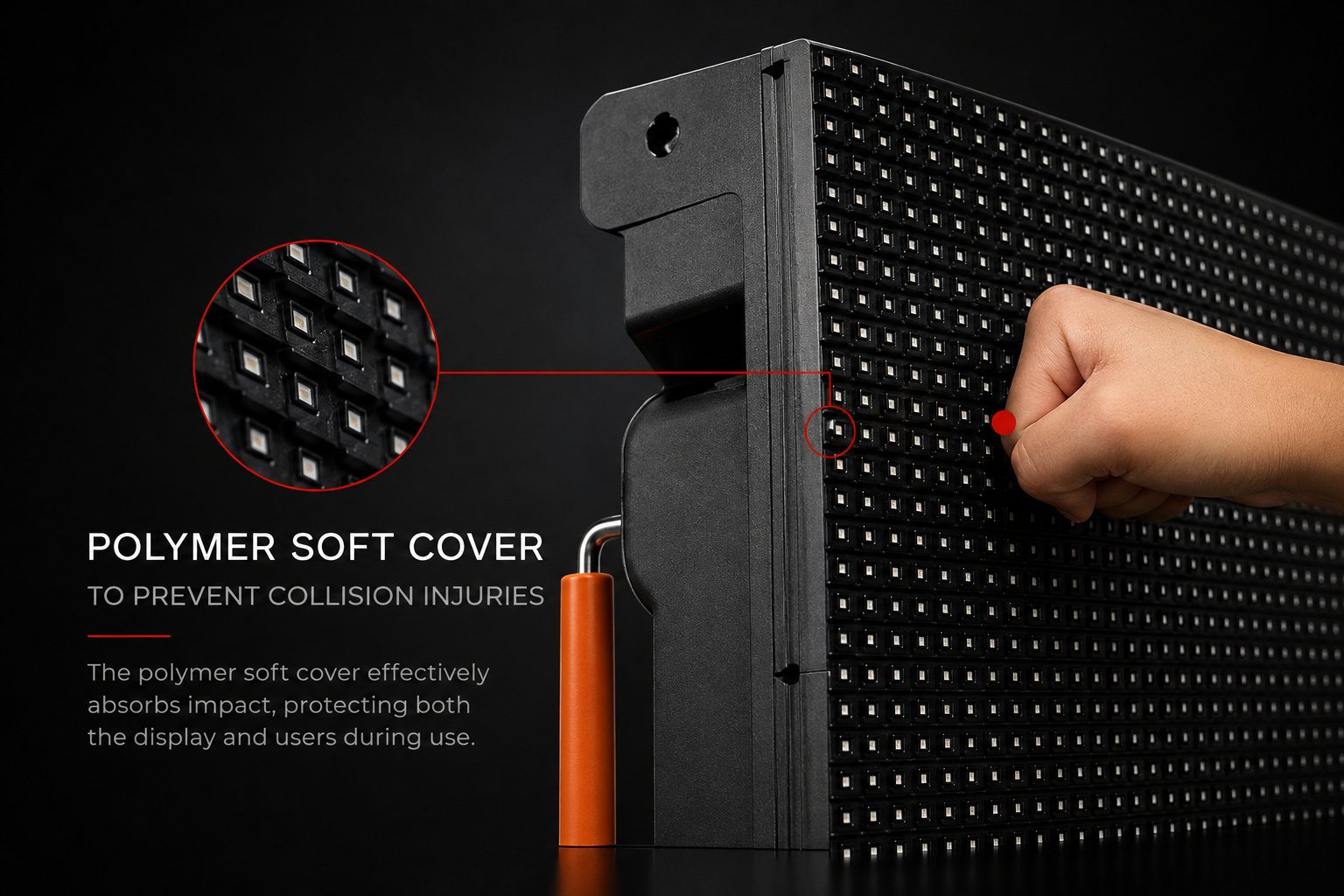

Polymer softcover to prevent collision injuries
Soft mask cover to protection LED perimeter and players
04

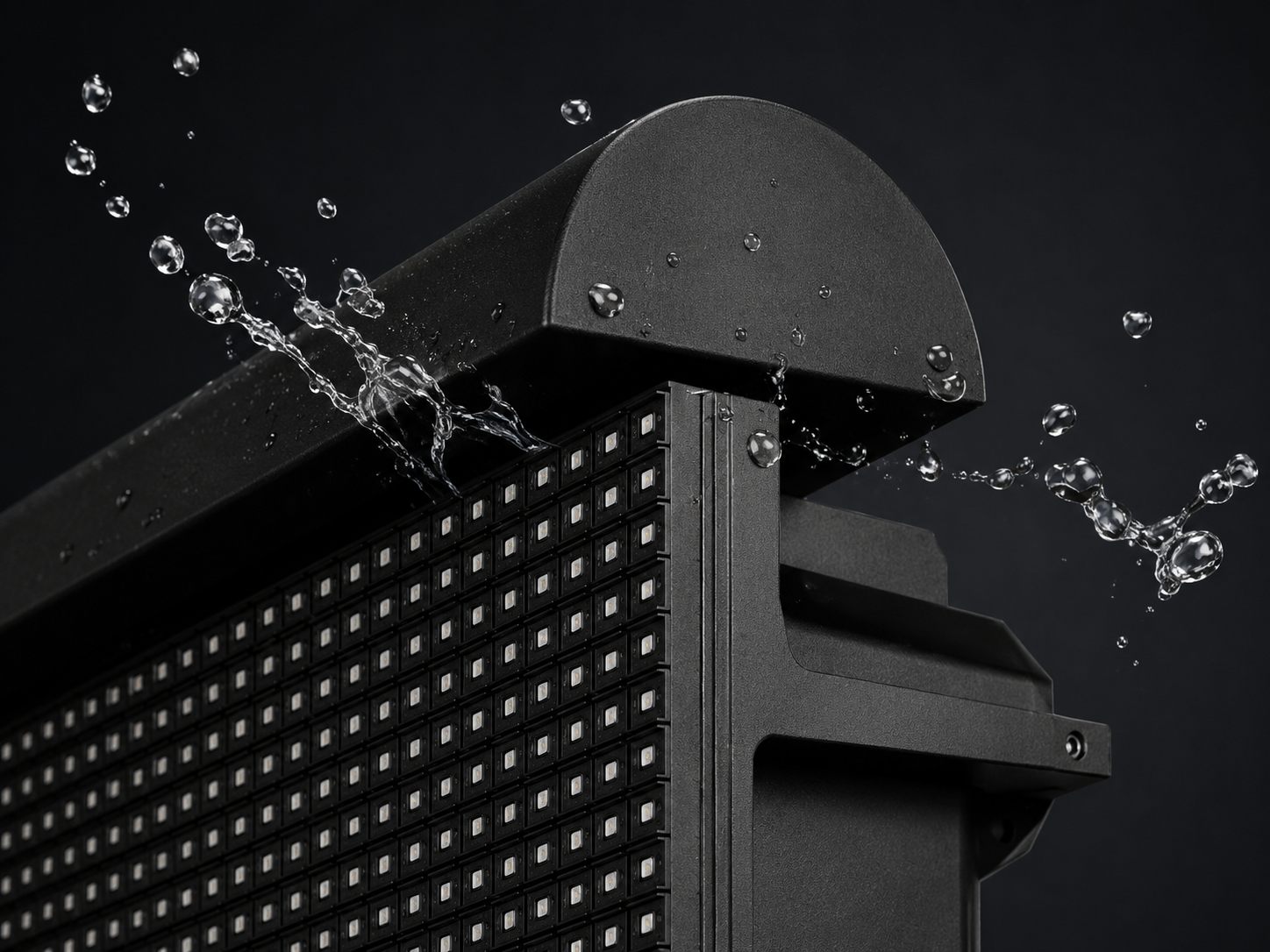

IP65 protection rate
IP65 protection rate and cabinet top cushion that protect the palyers from injury
APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01
02
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
P4 / P5 / P6.67
Brightness（亮度）
5500–6000 nits
Refresh Rate（刷新率）
≥1920Hz
Viewing Angle（可视角度）
140° / 140°
Cabinet Size（箱体尺寸）
960 × 960 × 142 mm
Cabinet Material（箱体材质）
Die-cast Aluminum
Cabinet Weight（箱体重量）
30kg per Cabinet / 35kg/m²
IP Rating（防护等级）
Front IP65 / Rear IP54
Power Consumption（功耗）
Max 800W/m² Avg 300W/m²
Input Voltage（输入电压）
AC200–240V (±10%)
Operating Temperature（工作温度）
-10°C ~ +60°C
Lifetime（使用寿命）
100,000 Hours
Certification（产品认证）
CE, EMC, FCC, RoHS
Warranty（保修）
3 Years RTB Parts and Labour
PRODUCT RESOURCES
Download Center
Download product specifications, manuals and technical resources.
DATASHEET
Product Specification Sheet
Complete technical specifications and product information.
