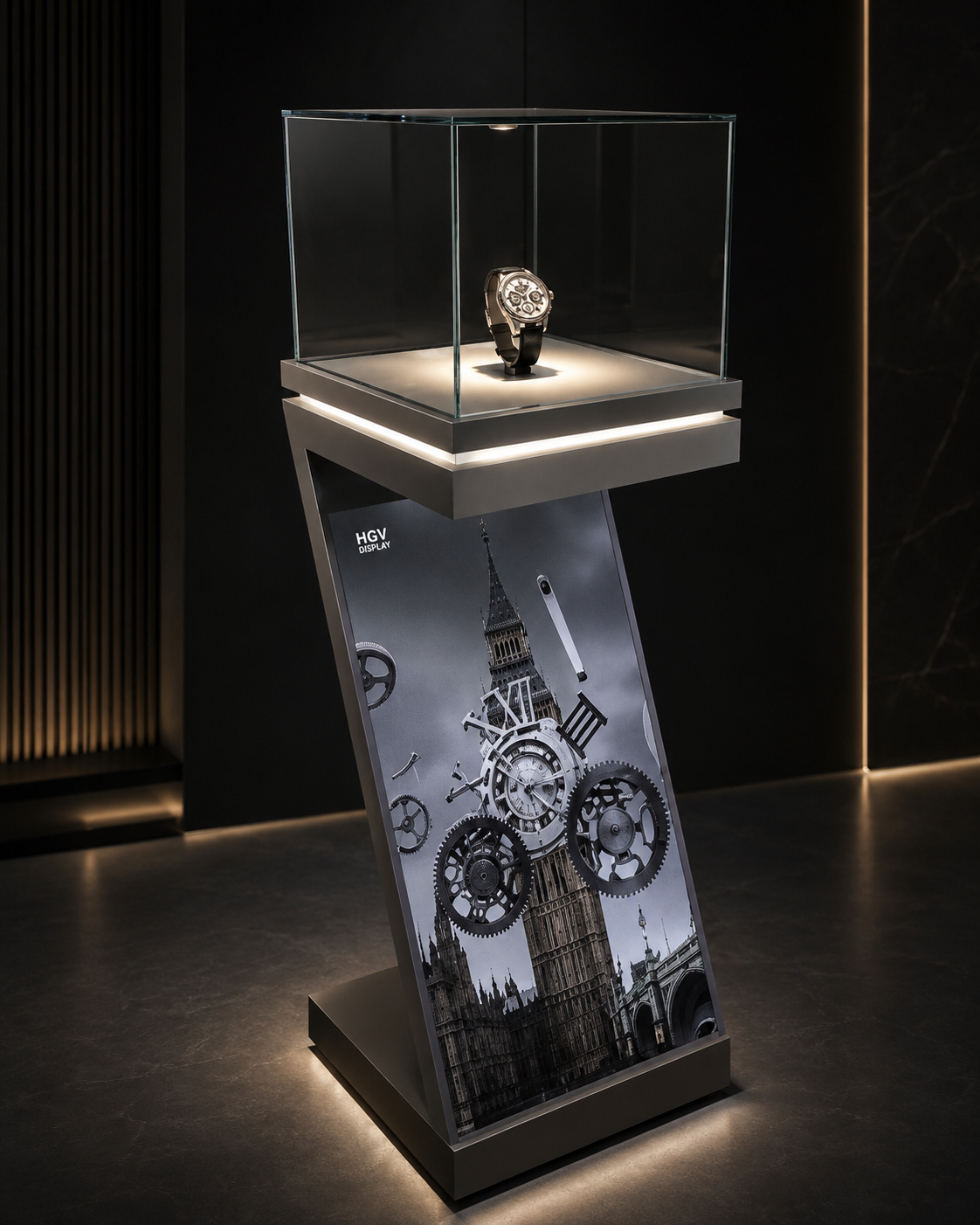

LED Z-shaped Showcase Screen

Retail LED Solutions

LED Z-shaped Showcase Screen

Product Description: LED Z-shaped screens are specialized,, modern display solutions, often designed as innovative LED indoor Z-shaped display cases for luxury retail, jewelry, and high-end brand showcasing. These displays blend art and technology to elevate product presentations. They are characterized by a distinct Z-shaped, multi-level structure that creates an immersive, center-of-attention effect in retail environments.

Contact Us

Product advantages

Key Features

Key Features
01

Key Features

HGV DISPLAY Retail: Used to showcase high-end products, such as jewelry and cosmetics, by providing a unique, angled, multi-tiered viewing surface.

Creative Display: Often utilized in creative LED installations, offering a non-linear, sculptural alternative to flat screens.

APPLICATIONS

Application Scenarios

Flexible display solutions designed for a wide range of professional environments.

01

TECHNICAL DATA

Specifications

Technical specifications and product performance data.

Pixel Pitch（像素间距）
P1.53 / P1.86 / P2.0 / P2.5
Brightness（亮度）
600–800 nits
Refresh Rate（刷新率）
3840 Hz
Viewing Angle（可视角度）
Horizontal 140° / Vertical 120°
Cabinet Size（箱体尺寸）
320 × 640 mm
Cabinet Material（箱体材质）
Steel Cabinet
IP Rating（防护等级）
Indoor
Gray Scale（灰度等级）
16 Bit
Power Consumption（功耗）
＜360 W/m²
Input Voltage（输入电压）
AC200–240V (±10%)
Lifetime（使用寿命）
100,000 Hours
Certification（产品认证）
CE, EMC, FCC, RoHS
Warranty（保修）
3 Years RTB Parts and Labour

PRODUCT RESOURCES

Download Center

Download product specifications, manuals and technical resources.

DATASHEET

Product Specification Sheet

Complete technical specifications and product information.

Download PDF
