01

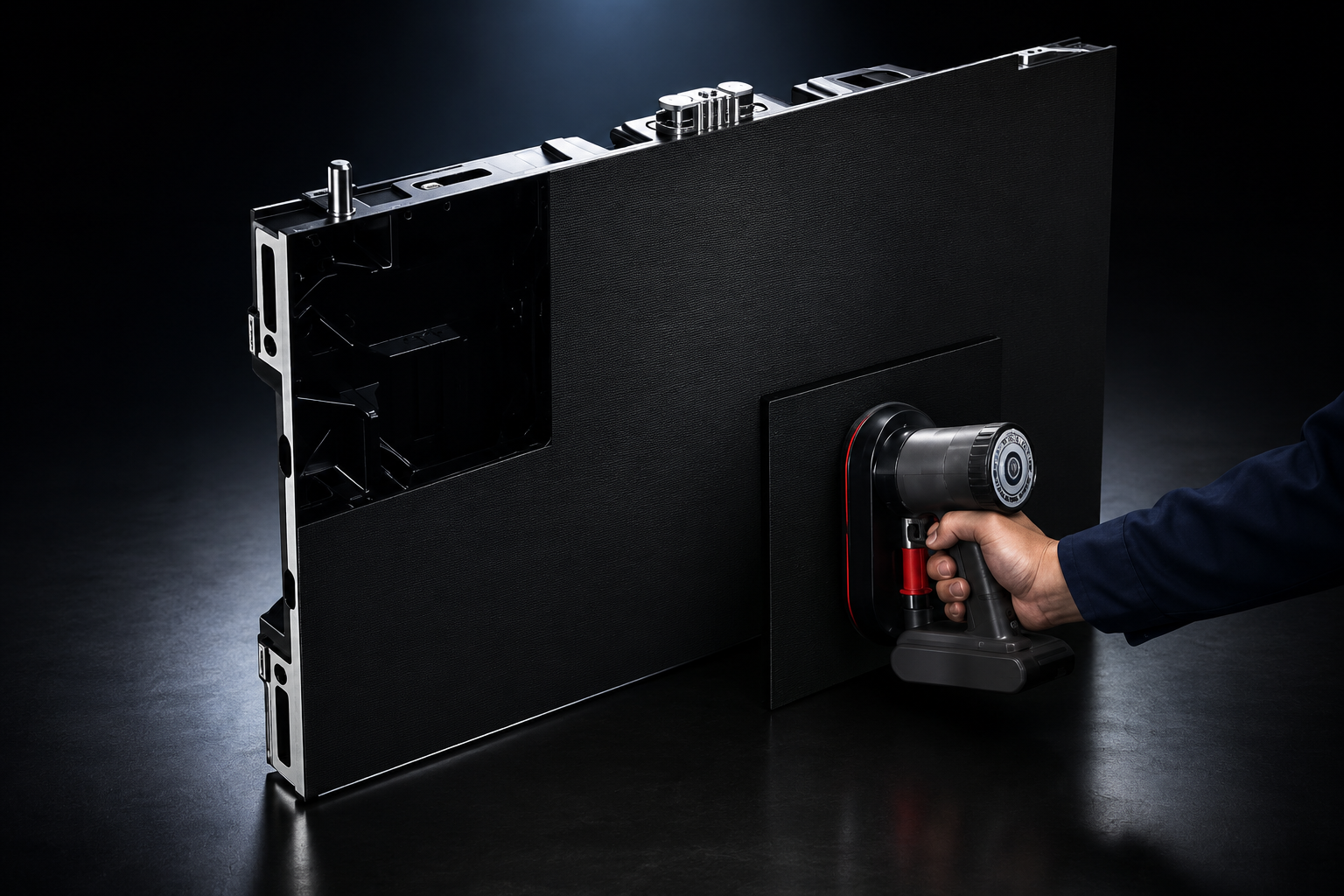

Full Front Maintenance
Allows full front maintenance, making disassembly and maintenance highly efficient.
Indoor LED Displays

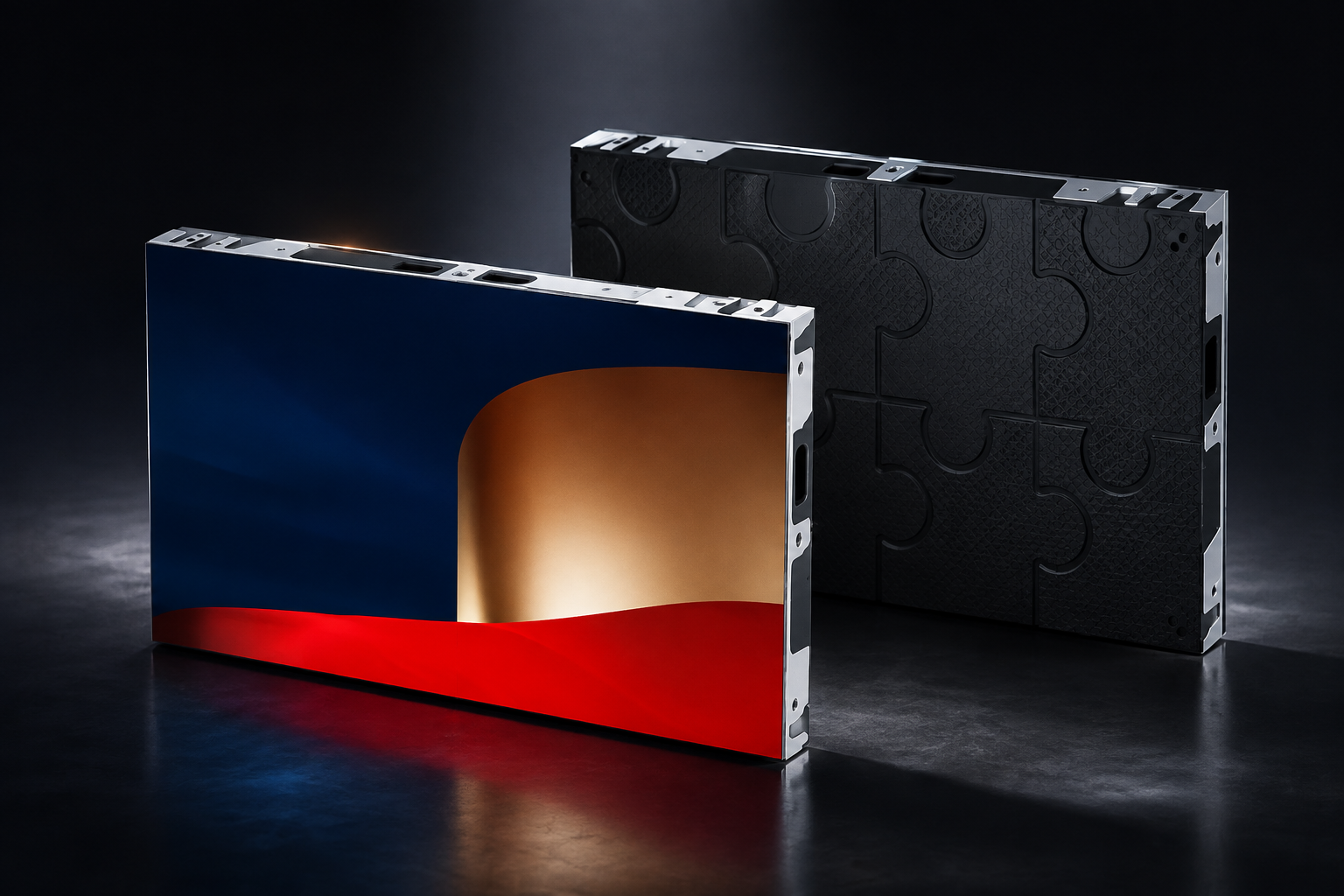

Indoor Fine Pixel Pitch LED
Product Description: Ultra-fine pixel pitch LED display featuring seamless cabinet design, exceptional image clarity, high refresh rate, energy efficiency, and reliable performance for premium indoor visual applications.
Product advantages
Key Features
02
Highlights
Flip COB Design
Offers full illumination and softer light without pixel particles, effectively combating digital visual fatigue.
High Contrast
Product Contrast Ratio: 10000:1
Offers full illumination and softer light without pixel particles, effectively combating digital visual fatigue.
High Contrast
Product Contrast Ratio: 10000:1
03

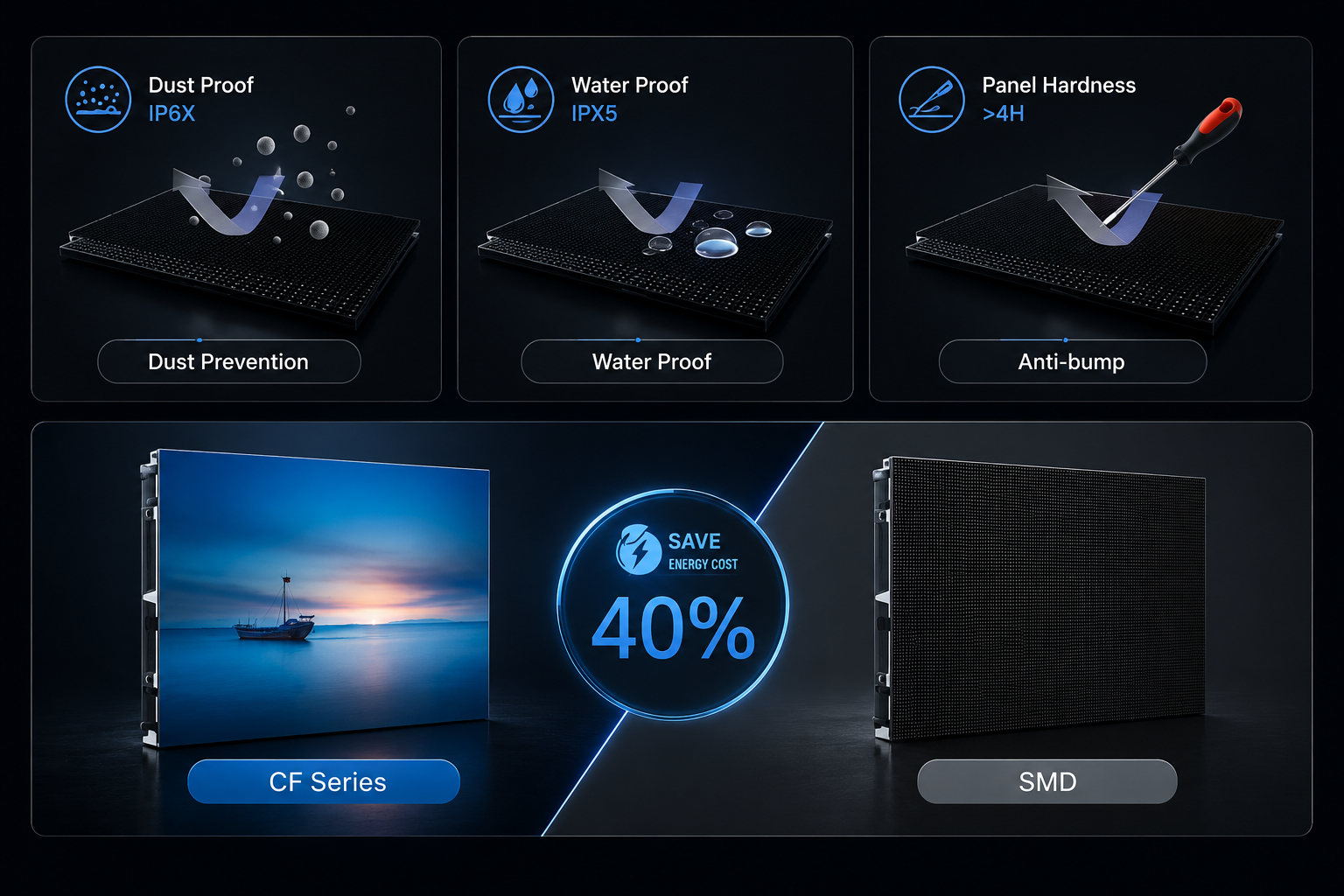

High Protection
t has dust proof and anti-fingerprint surface, leaving no visible traces when touched. It is also waterproof and moisture-proof, with low rate of dead pixels and high hardness against minor knocks.
The power consumption of a single box is less than 75 watts, which is 40% lower than SMD products.
The power consumption of a single box is less than 75 watts, which is 40% lower than SMD products.

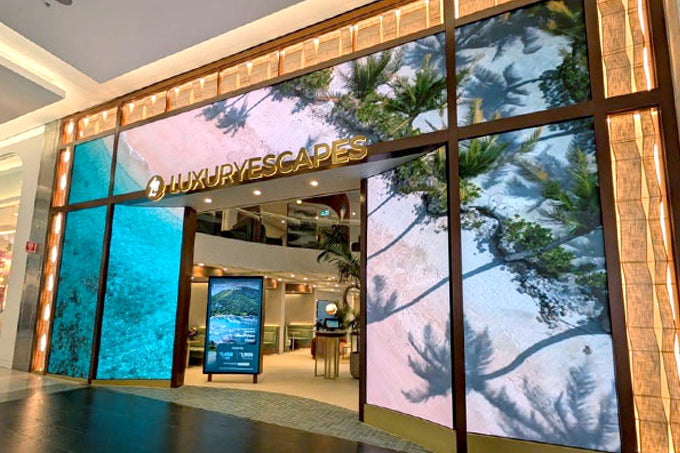

APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01

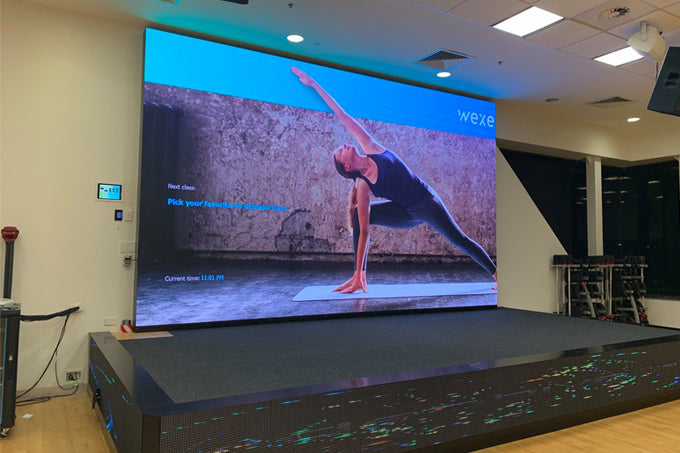

Good Ink Consistency
With the full control of the ink color parameters on the surface of the lightboard, the ink color at all angles is guaranteed to be uniform. It significantly solves the industry's issue regarding ink color difference in batches.
02
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
1.56 mm
Brightness（亮度）
600 nits
Refresh Rate（刷新率）
≥3840 Hz
Viewing Angle（可视角度）
160° / 160°
Cabinet Size（箱体尺寸）
600 × 337.5 × 39.75 mm
Cabinet Material（箱体材质）
Die-cast Aluminum
Cabinet Weight（箱体重量）
4.5 kg
IP Rating（防护等级）
IP65 Front / IP43 Rear
Power Consumption（功耗）
Max 330W/㎡ Avg 110W/㎡
Input Voltage（输入电压）
AC100-240V 50/60Hz
Operating Temperature（工作温度）
-20°C ~ +60°C
Lifetime（使用寿命）
100,000 Hours
Warranty（保修）
3 Years Parts Warranty
PRODUCT RESOURCES
Download Center
Download product specifications, manuals and technical resources.
DATASHEET
Product Specification Sheet
Complete technical specifications and product information.
