01

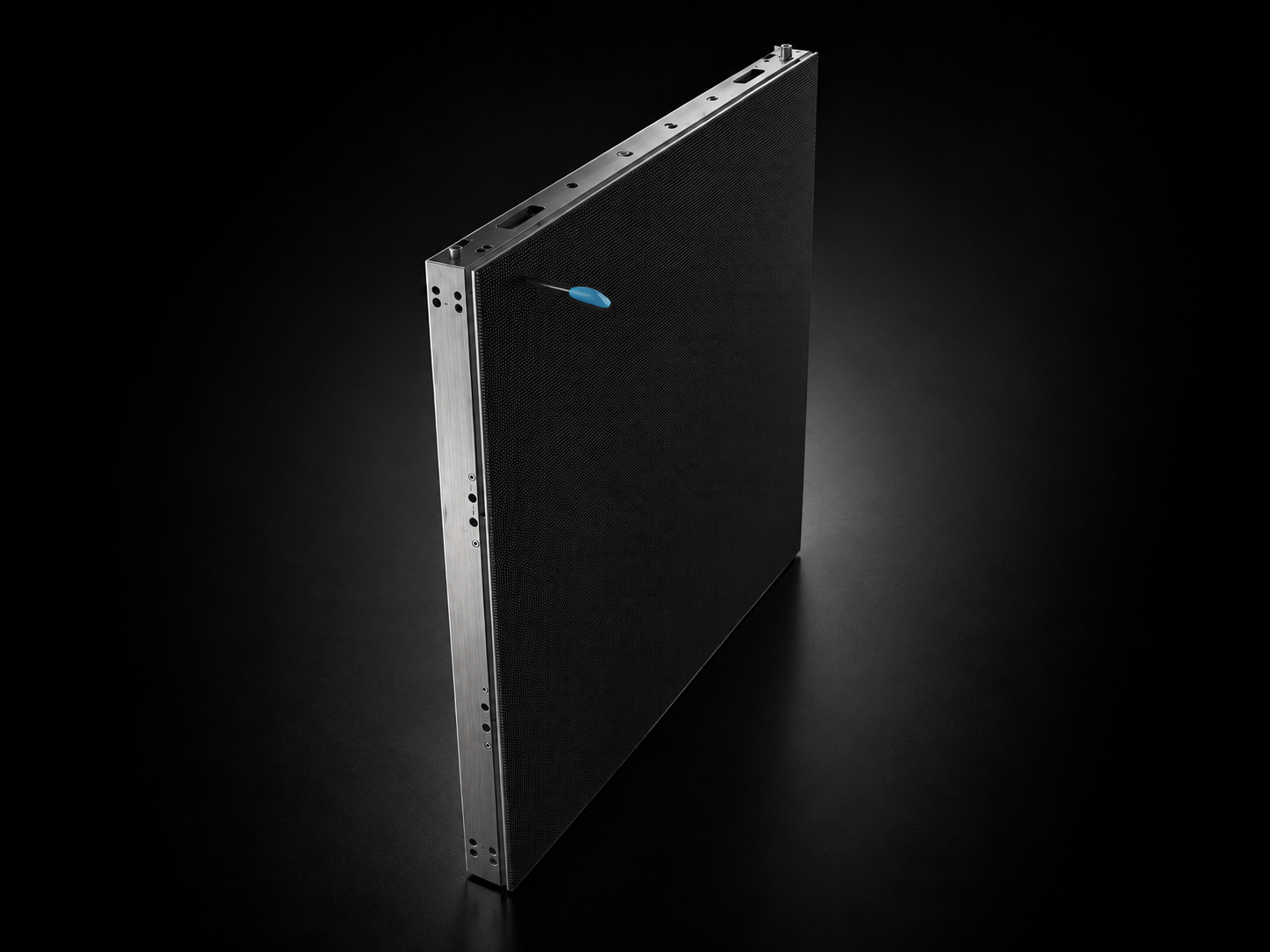

Full front maintenance
The cabinet support full front maintenance. Modularization design is convenient for installation and maintenance, Which can fit customer demands better.
Outdoor LED Displays

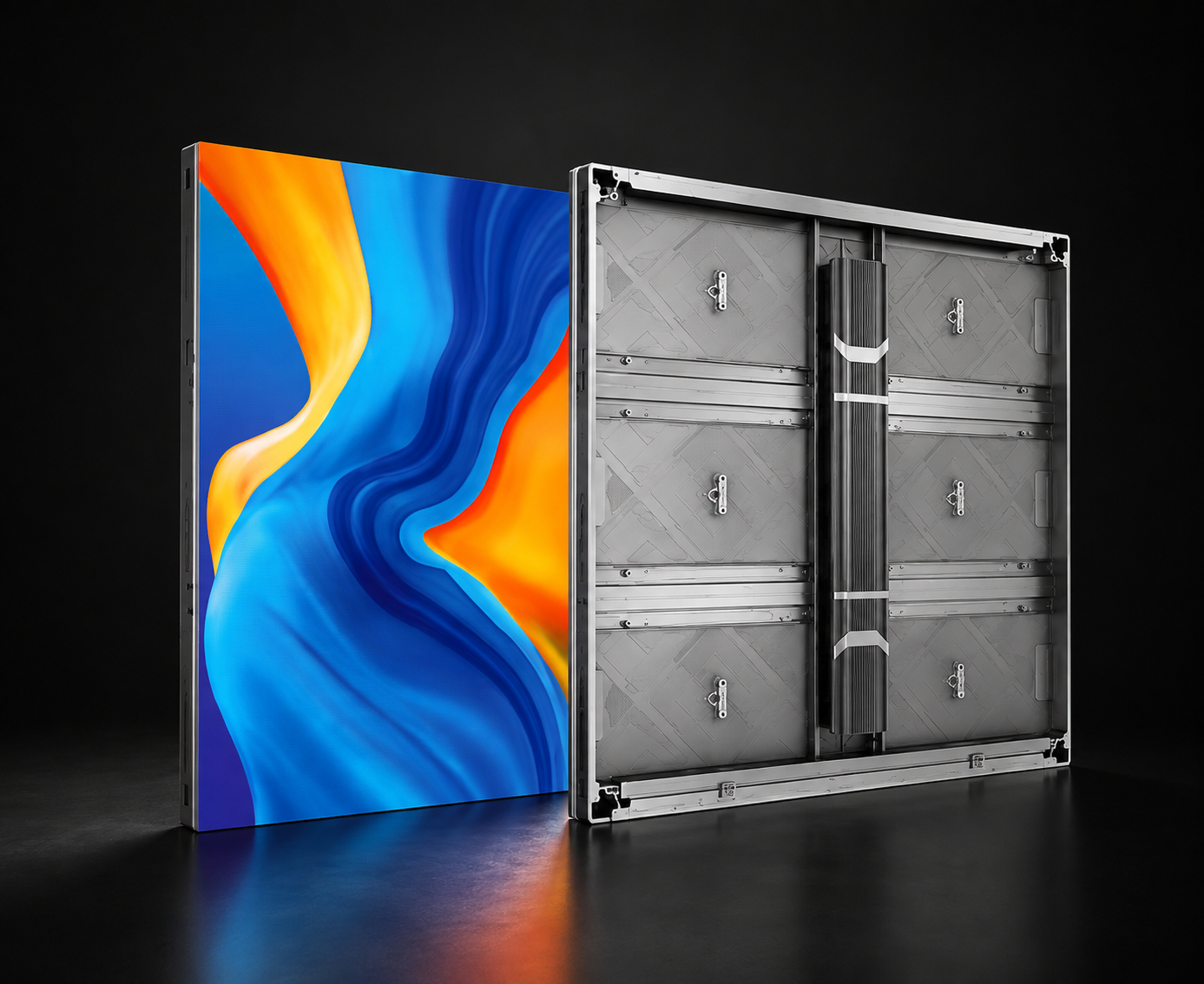

Outdoor Fixed LED Display PH series
Product Description: HGV DISPALY PH Series design with super slim only 72mm thickness, Super light weight with 25kg/panel. PH with high brightness, high refresh rate and excellent heat dissipation. Modularization design is convenient for installation and maintenance, which can fit customer demands easily.
Product advantages
Key Features
02

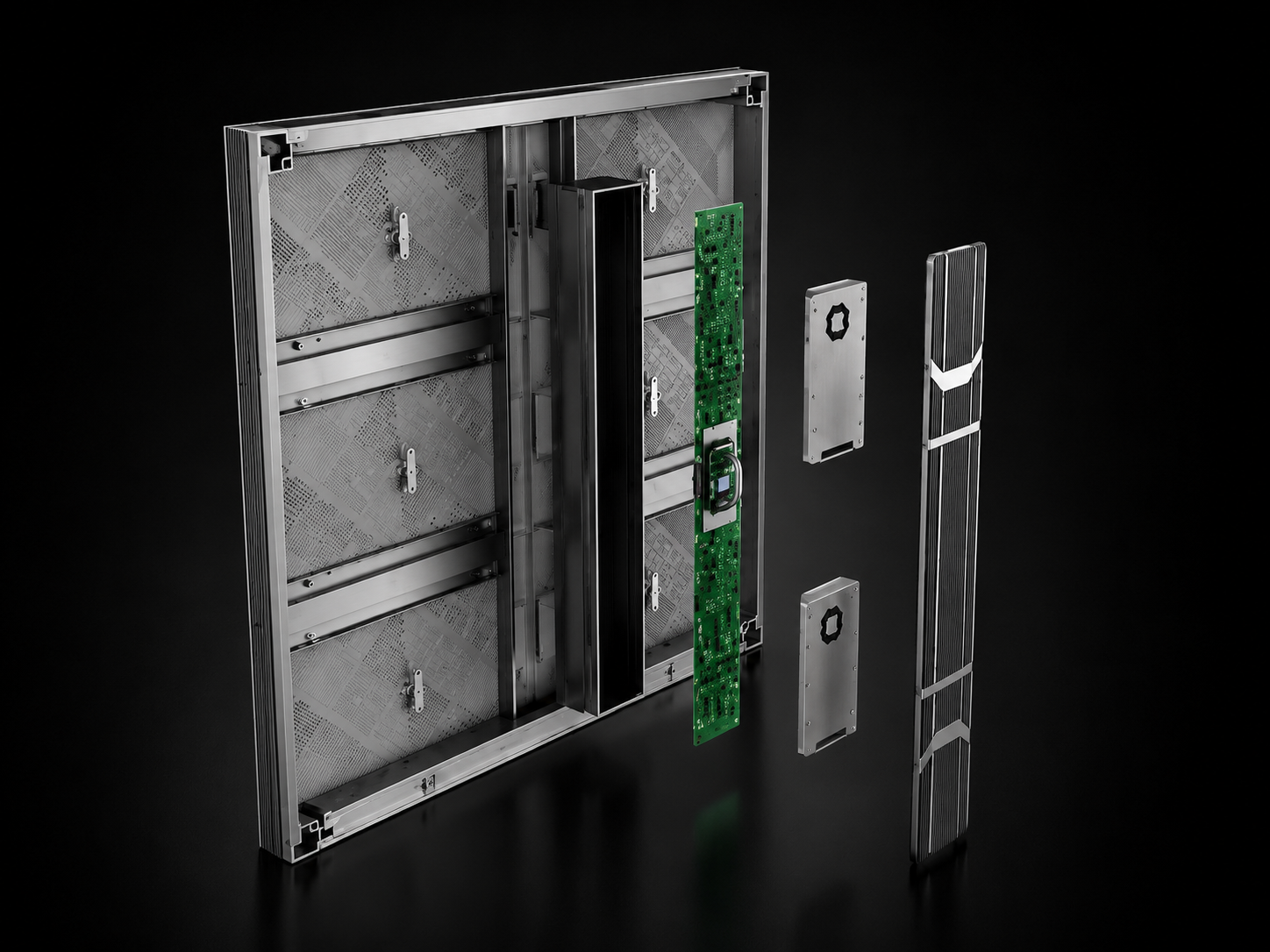

Full rear power box easy maintenance
Open the 3 buckles on the back cover, and unplug the connector to maintain the power supply; remove the fixing screws of the receiving card or adapter plate to maintain the receiving card or adapter plate;
03

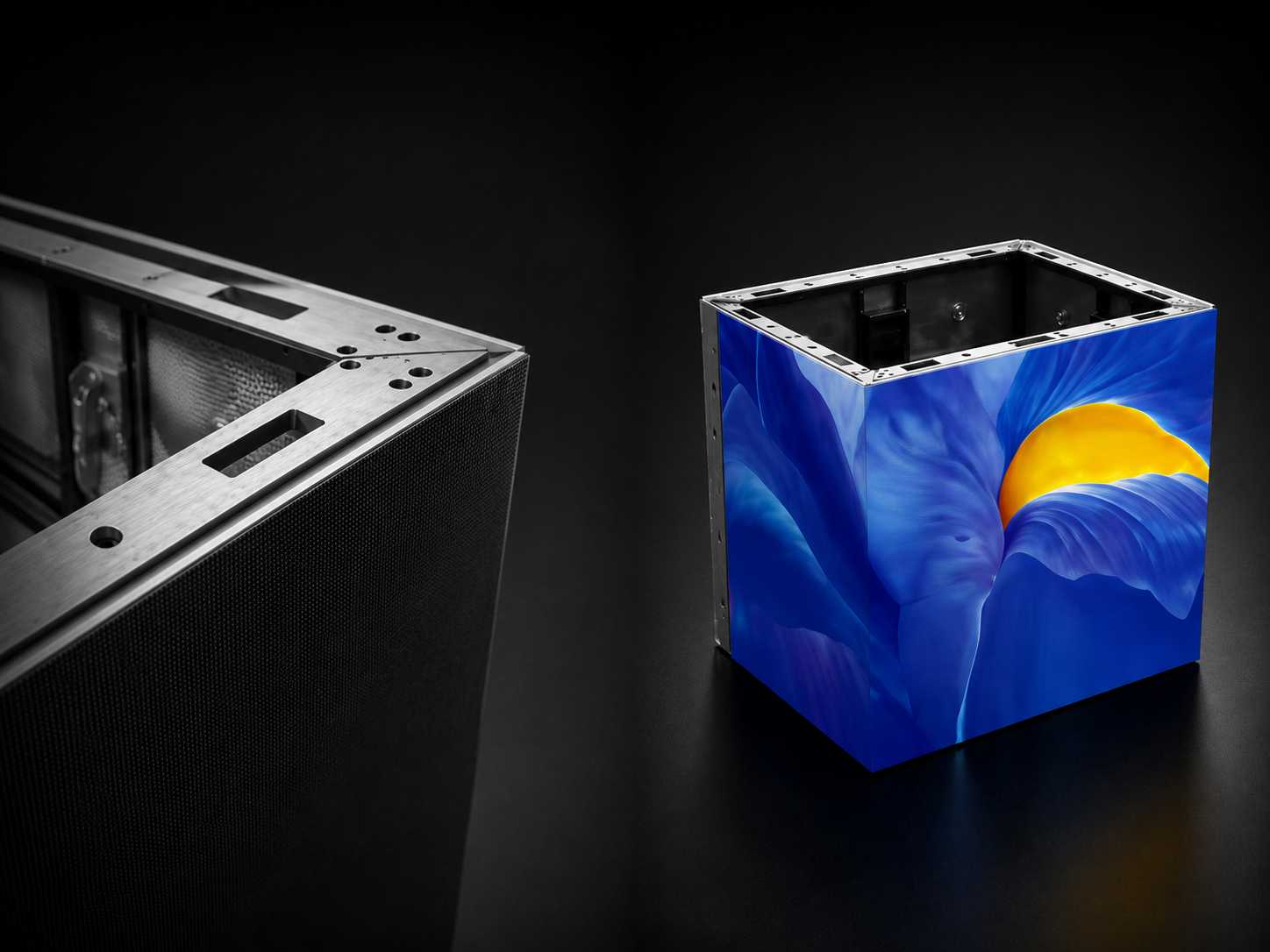

Clean and tidy installations cable hidden box design
Cabinet size: 960*960mm
Full front/Rear installations and maintenance Wireless Designs inside the power box, All the connections done by hard connections without any cables, Even hub-hub connections finished by hub switcher
Full front/Rear installations and maintenance Wireless Designs inside the power box, All the connections done by hard connections without any cables, Even hub-hub connections finished by hub switcher

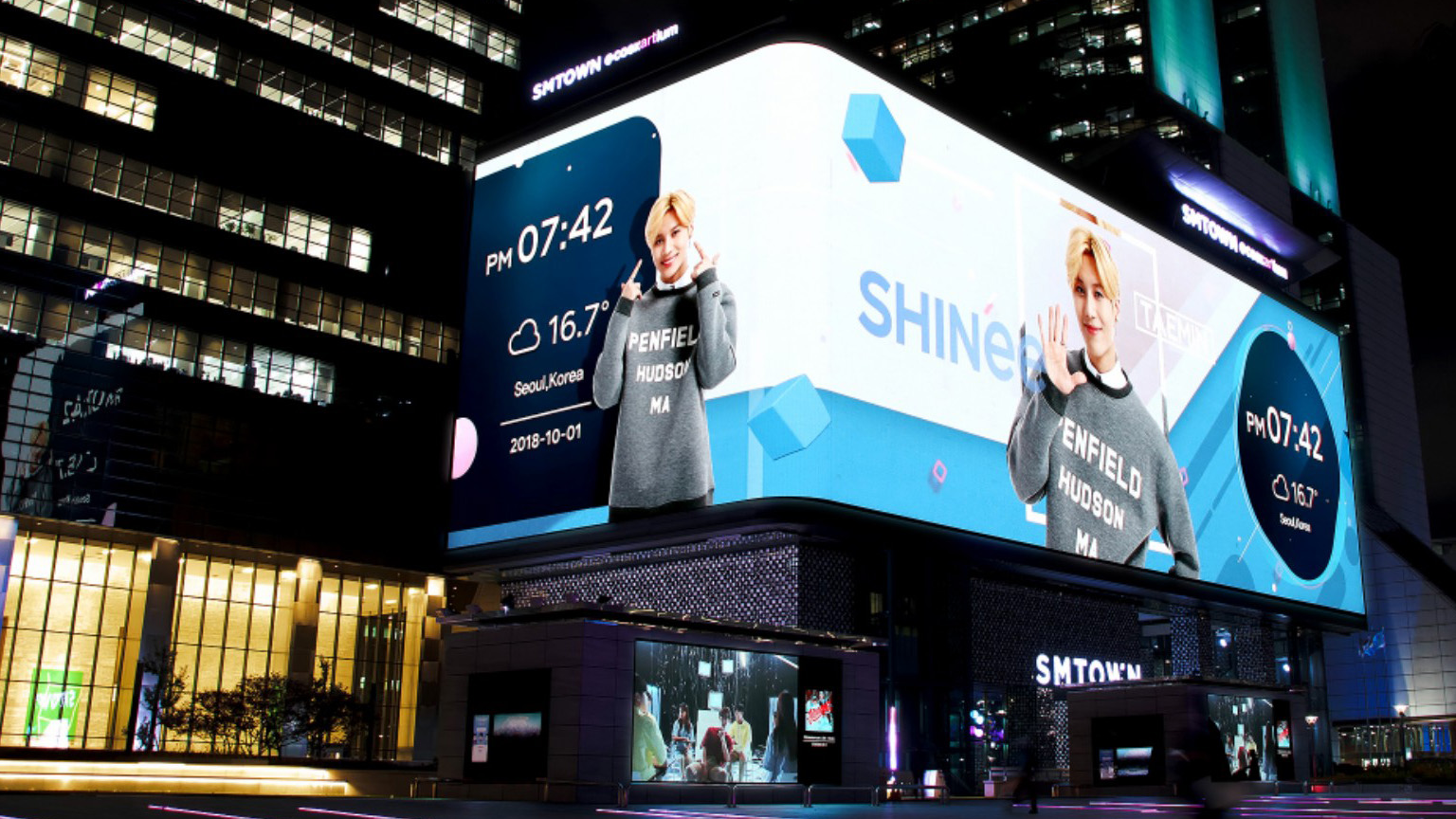

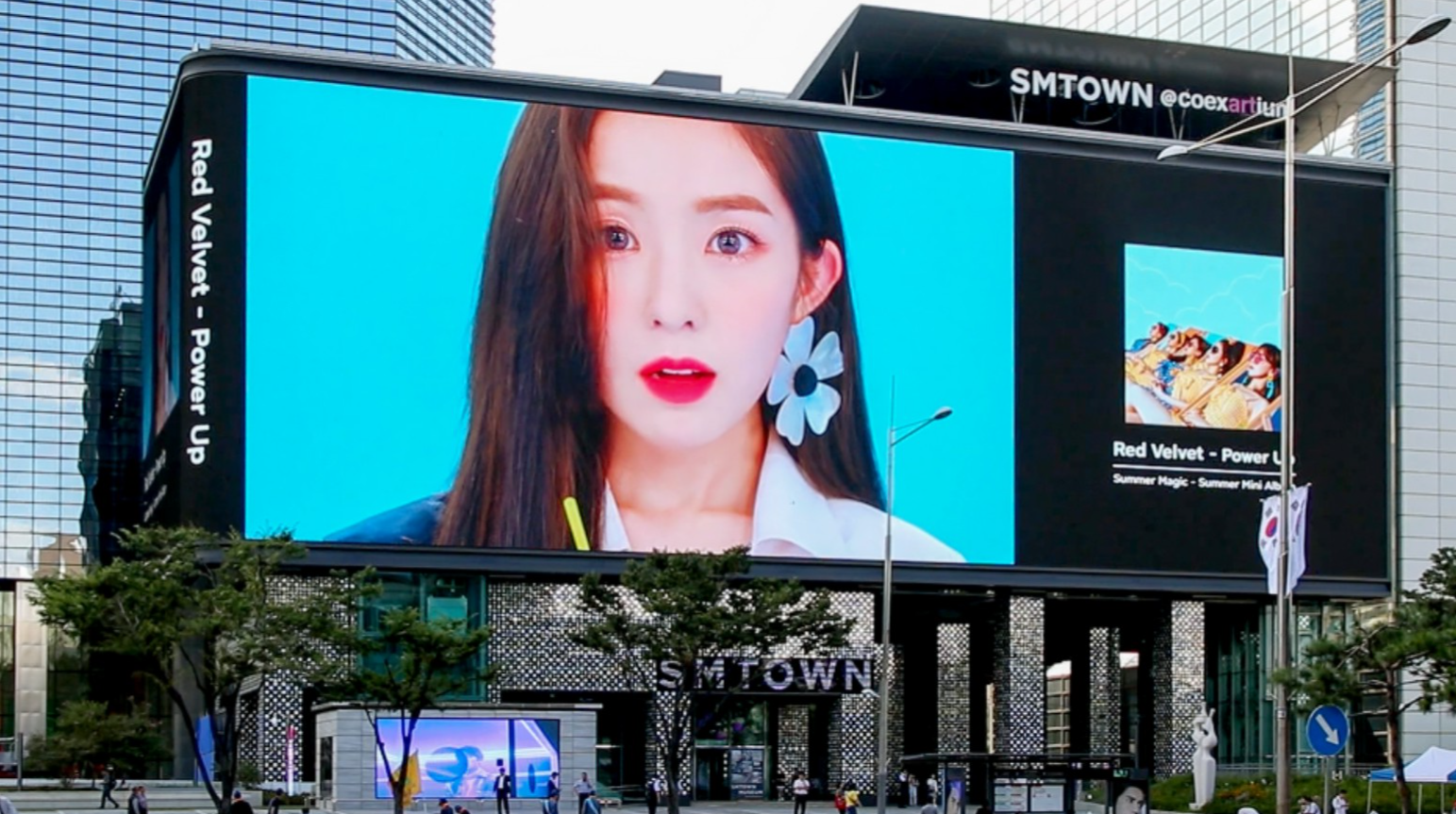

APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01
02
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
P5.7 / P6.67 / P8 / P10
Brightness（亮度）
6000–10000 nits
Refresh Rate（刷新率）
3840Hz
Viewing Angle（可视角度）
160° / 90°
Cabinet Size（箱体尺寸）
960 × 960 × 85 mm
Cabinet Material（箱体材质）
Aluminum Alloy
Cabinet Weight（箱体重量）
28kg ±0.5
IP Rating（防护等级）
Front IP68 / Rear IP66
Color Temperature（色温）
3500K–10000K (Adjustable)
Power Consumption（功耗）
Max <550W/m² Avg <150W/m²
Input Voltage（输入电压）
AC110–220V
Operating Temperature（工作温度）
-40°C ~ +60°C 10%–80% RH
Lifetime（使用寿命）
100,000 Hours
Certification（产品认证）
CE, EMC, FCC, RoHS
Warranty（保修）
3 Years
