01
High-end module
Engineered with premium materials for exceptional stability, precise alignment, and long-lasting performance.
Outdoor LED Displays

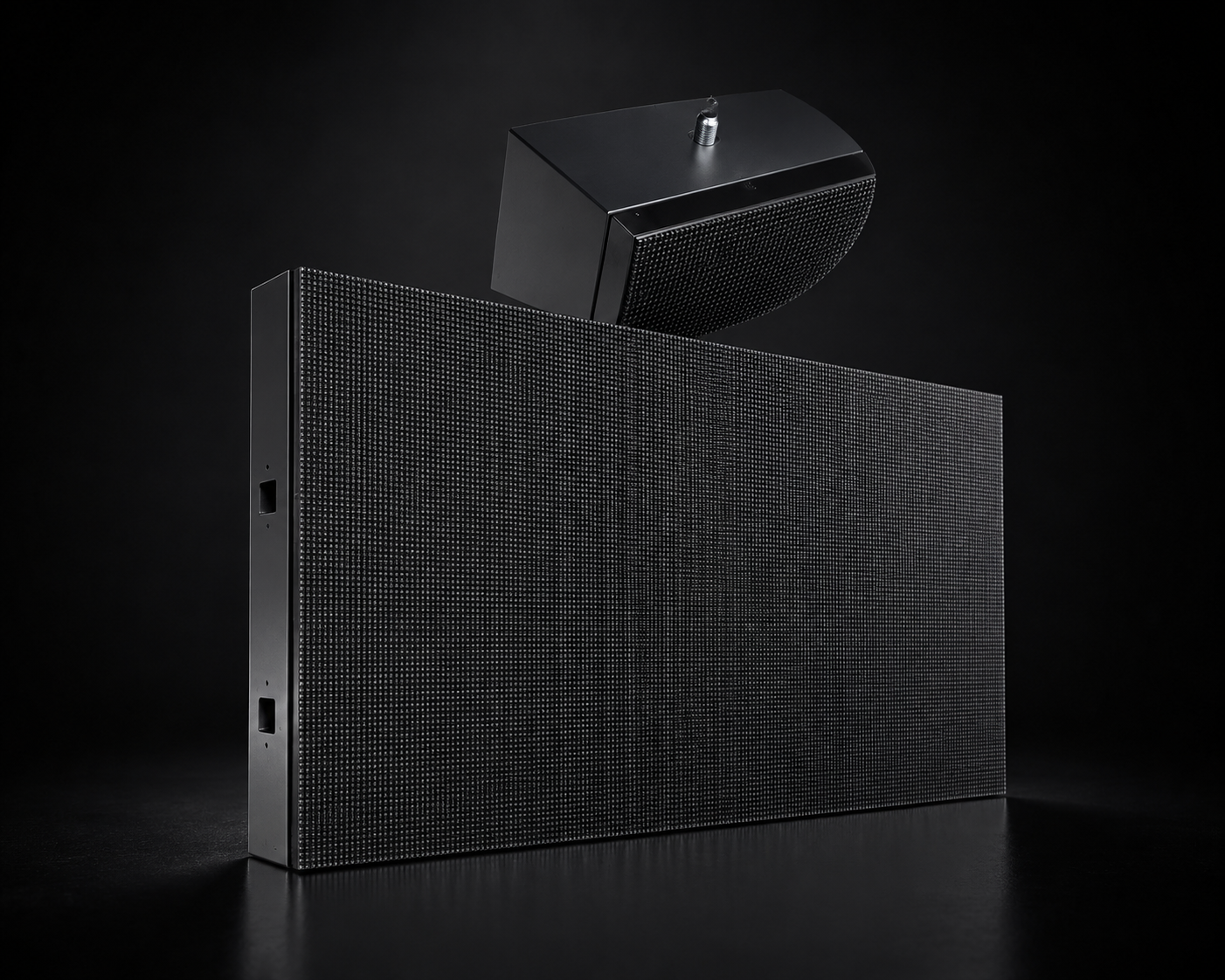

Outdoor Fixed LED Display QX series
Product Description: Compatible with P2.5,P3,P4,P5,P8,P10,easyfor screen upgrades Ultrathin, lightweight, and highly stable aluminum die casting structure Quick installation in 12 seconds
Product advantages
Key Features
02
Aluminum Sealed Panel
A lightweight aluminum cabinet with a sealed structure, providing superior strength, durability, and weather resistance.
03
Natural Heat Dissipation Hole
Optimized ventilation enhances natural heat dissipation, ensuring stable performance during continuous operation.

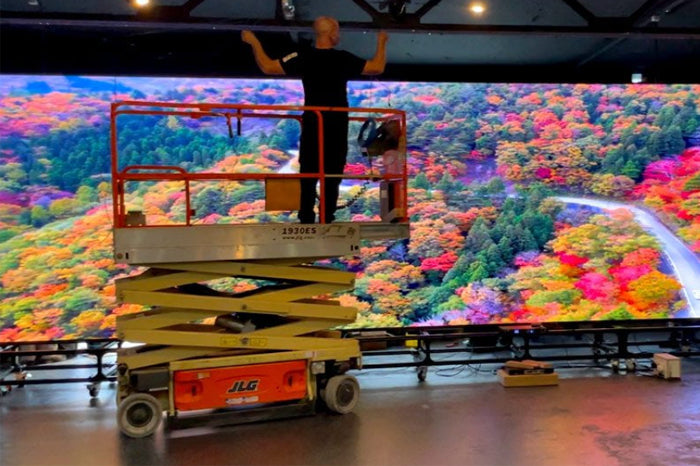

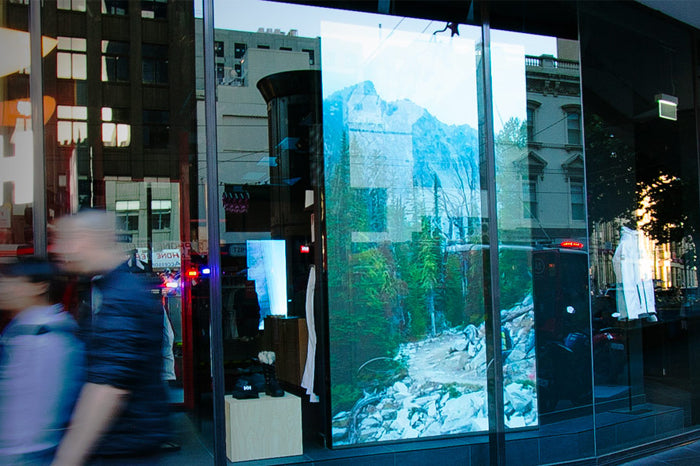

APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01
02
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
P2.5 / P3.91 / P4.81
Brightness（亮度）
4500–5500 nits
Refresh Rate（刷新率）
≥3840Hz
Viewing Angle（可视角度）
H140° / V120°
Cabinet Size（箱体尺寸）
500 × 500 × 80 mm 500 × 1000 × 80 mm
Cabinet Material（箱体材质）
Die-cast Aluminum
Cabinet Weight（箱体重量）
7.5kg / 13.5kg
IP Rating（防护等级）
Front IP65 / Rear IP54
Gray Scale（灰度等级）
16 Bit
Contrast Ratio（对比度）
5000:1
Color Temperature（色温）
3000K–9500K Adjustable
Power Consumption（功耗）
Max 700W/m² Avg 235W/m²
Input Voltage（输入电压）
AC100–240V 50/60Hz
Operating Temperature（工作温度）
-20°C ~ +60°C
Lifetime（使用寿命）
100,000 Hours
Certification（产品认证）
CE, EMC, FCC, RoHS
Warranty（保修）
3 Years
PRODUCT RESOURCES
Download Center
Download product specifications, manuals and technical resources.
DATASHEET
Product Specification Sheet
Complete technical specifications and product information.
