01

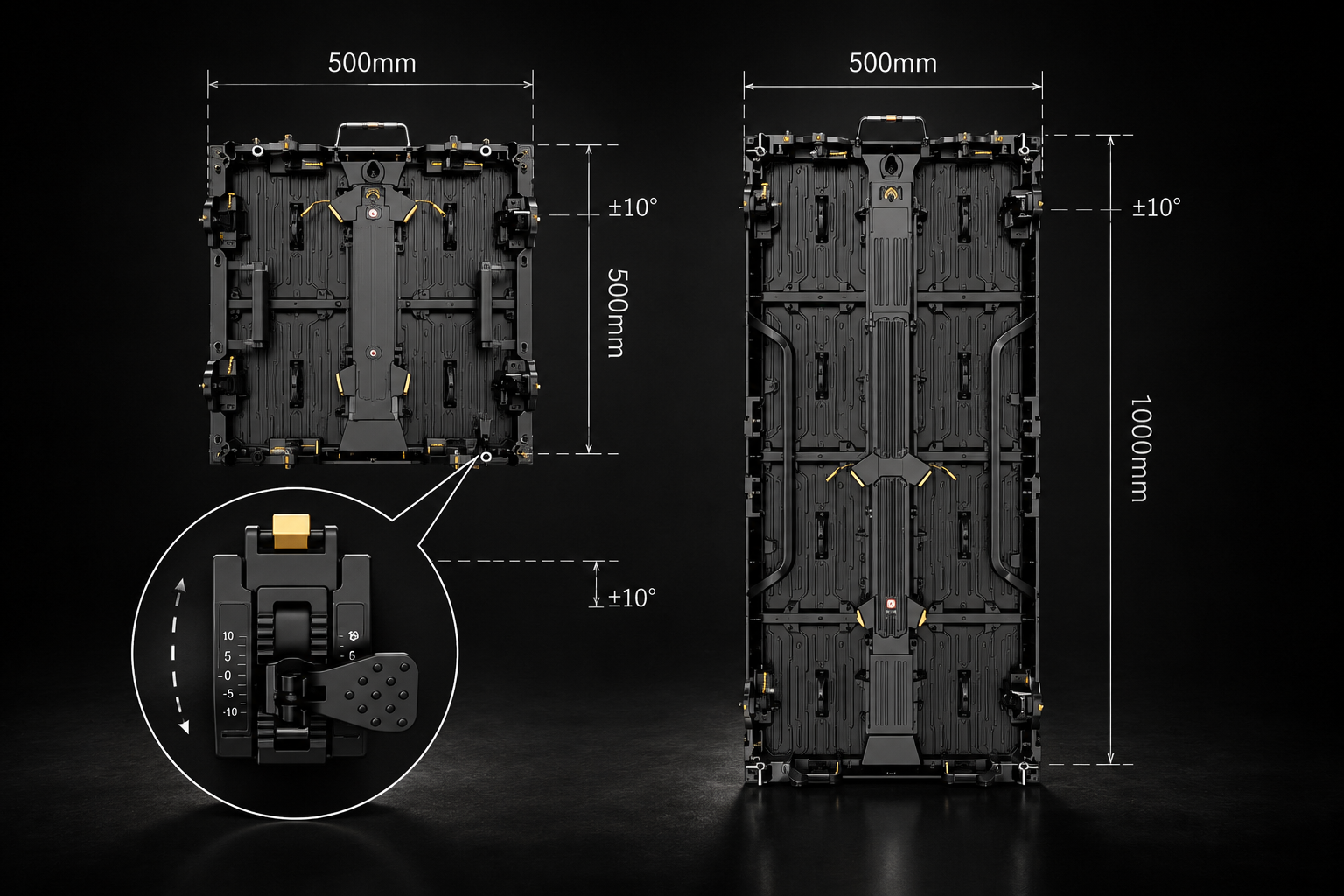

Lightweight Design
Lightweight design of the case. More flexible in use.
Better product operation experience.
Better product operation experience.
Rental LED Displays

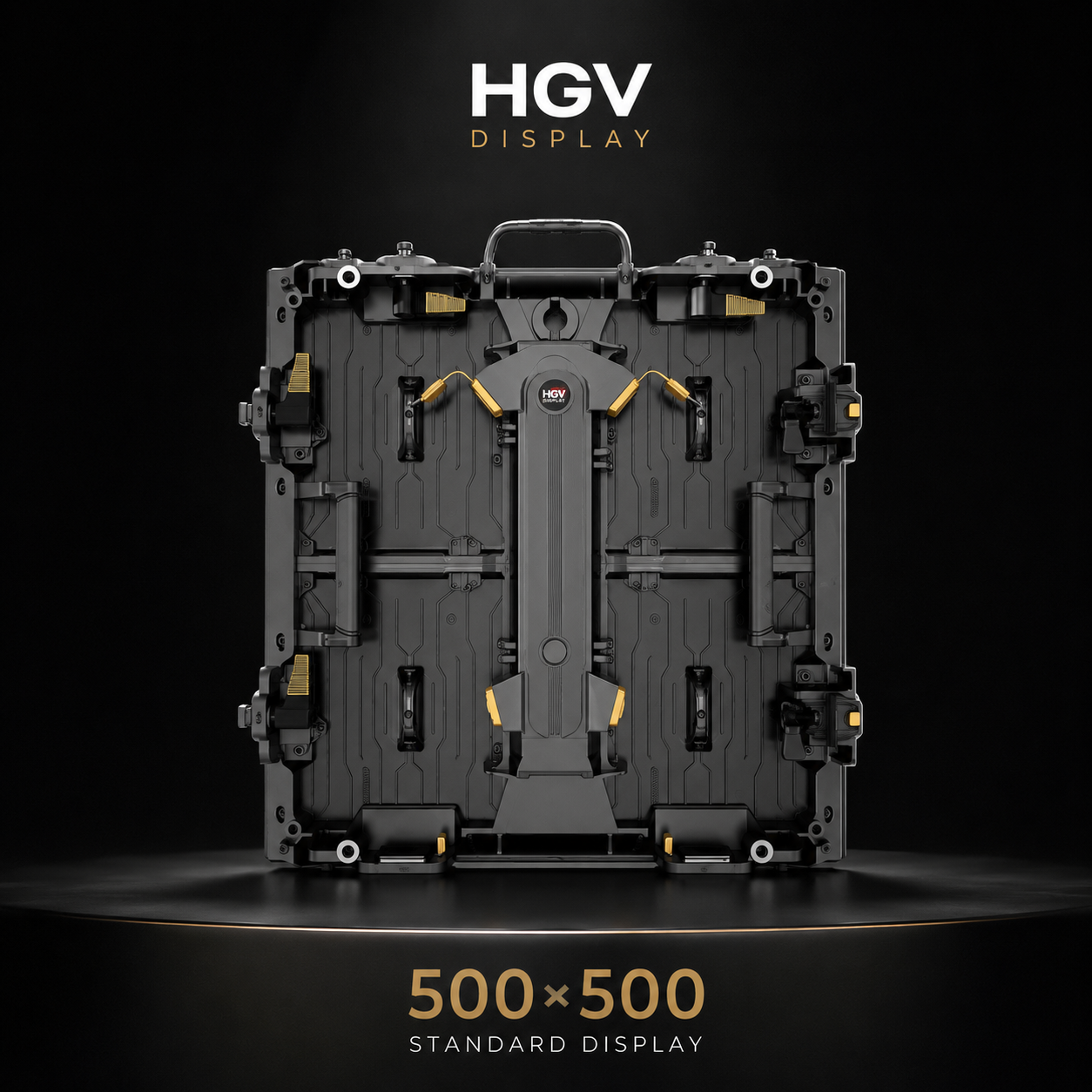

Outdoor Rental LED Display MQ Series
Product Description: LED screen rental refers to the temporary leasing of LED panels or video walls for events, advertising, or installations. You pay for usage rather than ownership, which reduces upfront investment and allows flexibility for different locations or event types.
Product advantages
Key Features
02

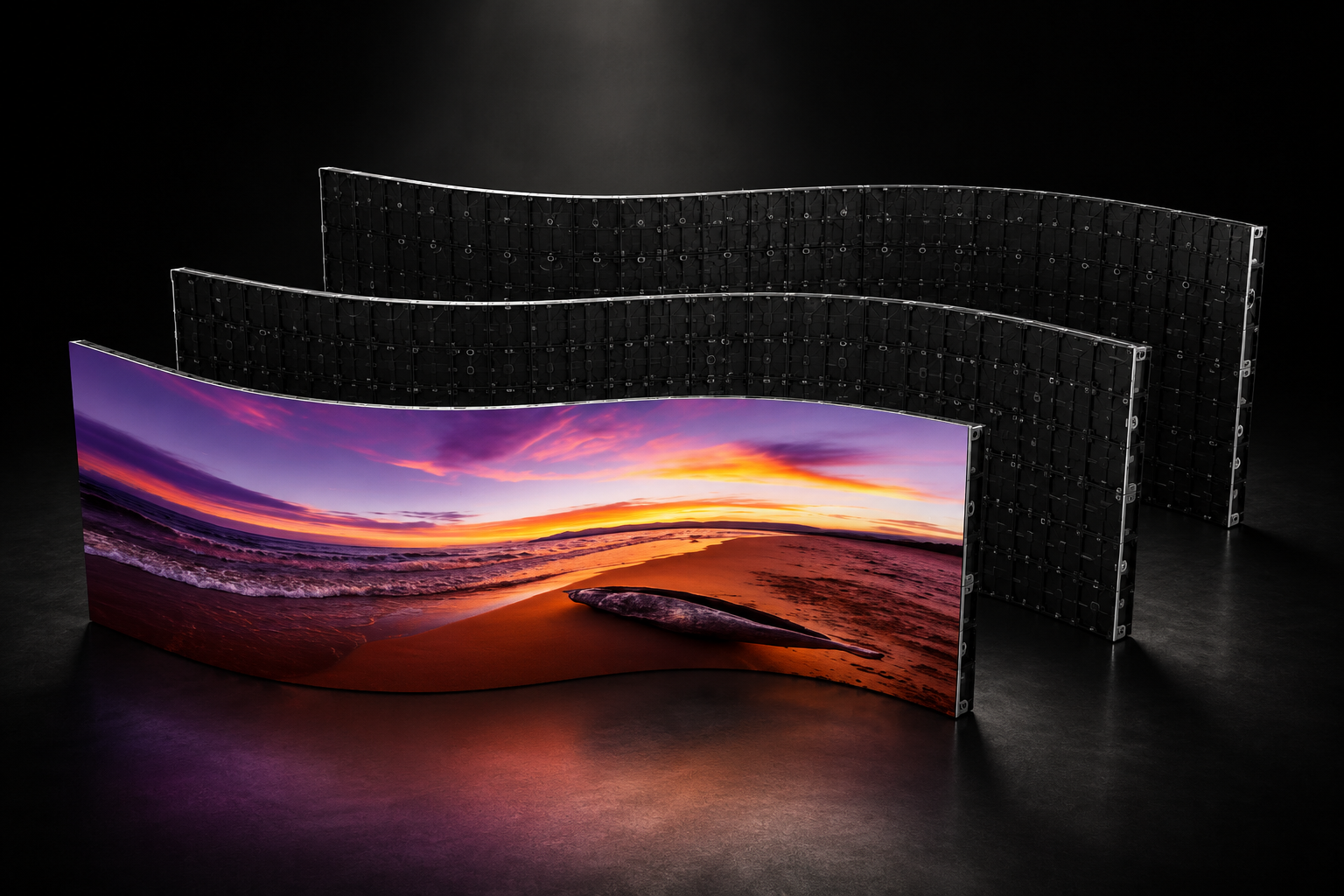

Curve shape as you wish
Support inner arc, outer arc splicing, to create a variety of arc shape,
to meet different customer needs.
to meet different customer needs.
03

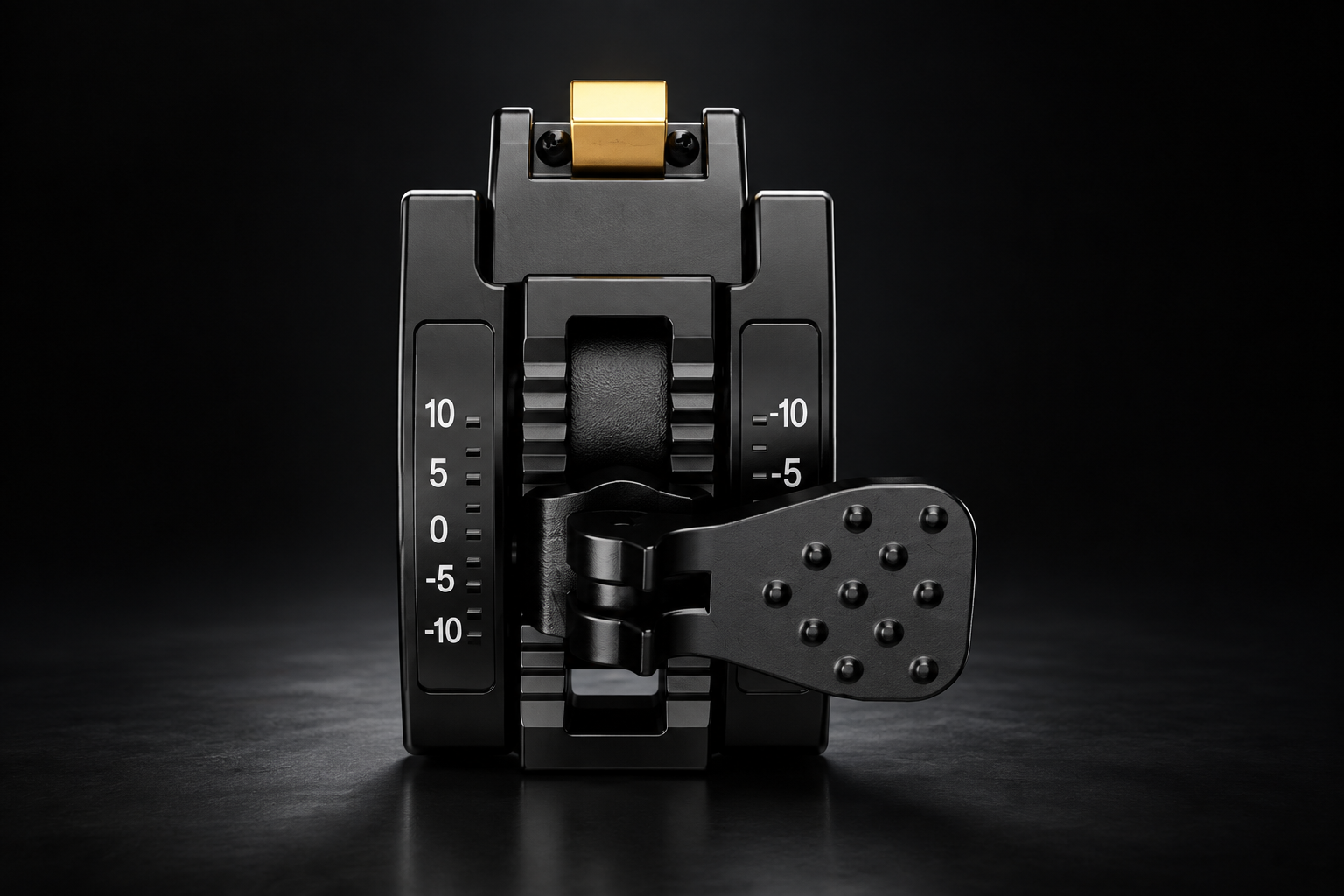

multiple angle
Arc lock supports multiple angle adjustments from -10° to +10°(in 2.5° increments)7.0kg+0.5(indoor)
APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01
Wide Application Scenarios
02
Wide Application Scenarios
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
1.953mm / 2.604mm / 2.976mm / 3.91mm
Brightness（亮度）
>800 nits (LV-MQ19 / MQ26 / MQ29 / MQ39) >4000 nits (LV-MQ039)
Refresh Rate（刷新率）
≥7680 Hz (LV-MQ19 / LV-MQ26) ≥3840 Hz (LV-MQ29 / LV-MQ39 / LV-MQ039)
Viewing Angle（可视角度）
Horizontal 160° / Vertical 140°
Cabinet Size（箱体尺寸）
500 × 500 × 64 mm 500 × 1000 × 64 mm
Cabinet Weight（箱体重量）
Indoor: 500×500mm: 7.0kg ±0.5 500×1000mm: 12.0kg ±0.5 Outdoor: 500×500mm: 7.4kg ±0.5 500×1000mm: 12.4kg ±0.5
IP Rating（防护等级）
LV-MQ19 / MQ26 / MQ29 / MQ39: Front IP20 / Rear IP20 LV-MQ039: Front IP65 / Rear IP65
Power Consumption（功耗）
Max <580 W/m² Average <200 W/m² (P1.953 / P2.976) Average <180 W/m² (P2.604 / P3.91)
Input Voltage（输入电压）
AC100–240V (±10%)
Lifetime（使用寿命）
100,000 Hours
Certification（产品认证）
CE, EMC, FCC, RoHS
Warranty（保修）
3 Years
PRODUCT RESOURCES
Download Center
Download product specifications, manuals and technical resources.
DATASHEET
Product Specification Sheet
Complete technical specifications and product information.
