01

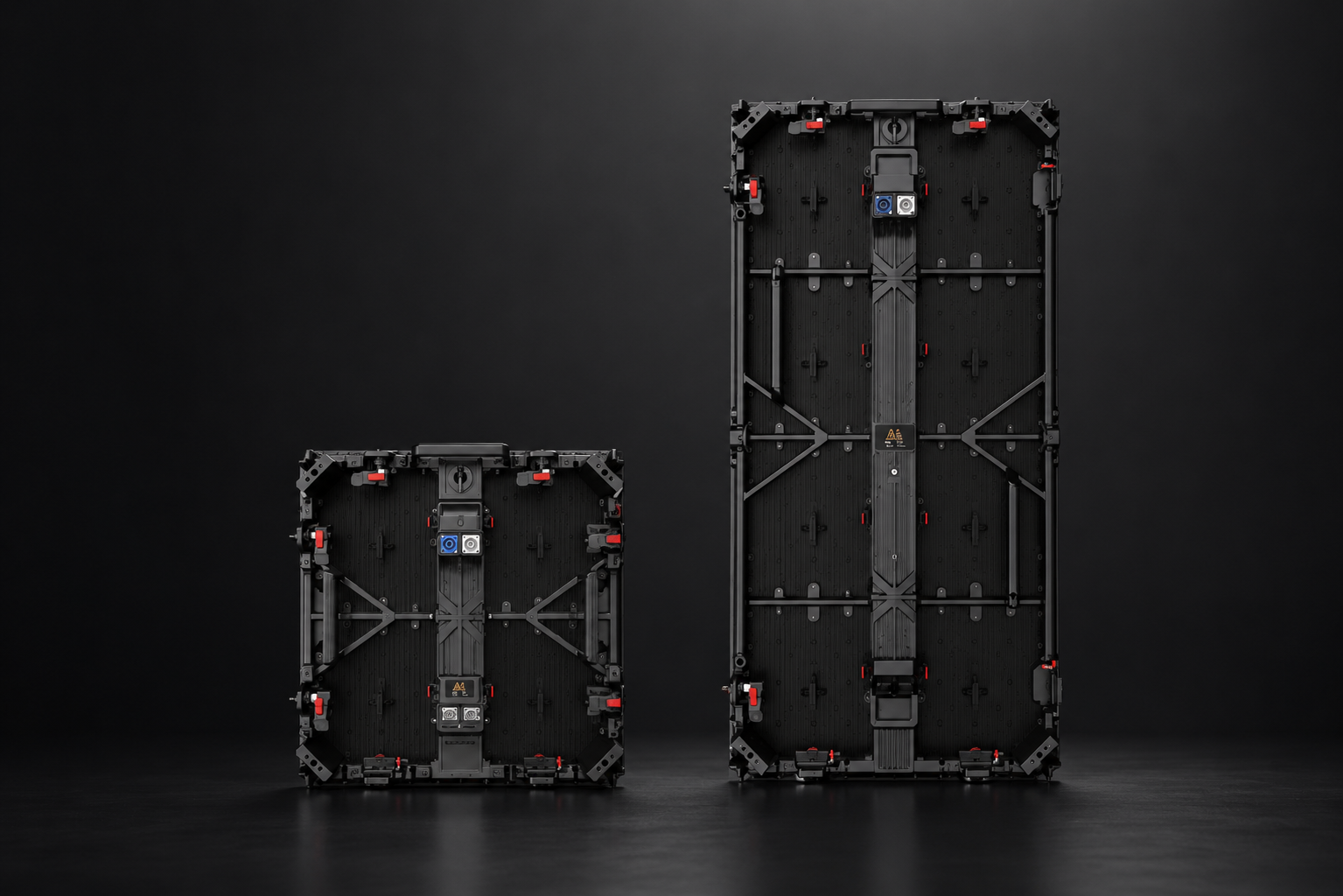

Lightweight Design
weight design of the cabinet,
Light more flexible when using, better operation experience.
Light more flexible when using, better operation experience.
Rental LED Displays

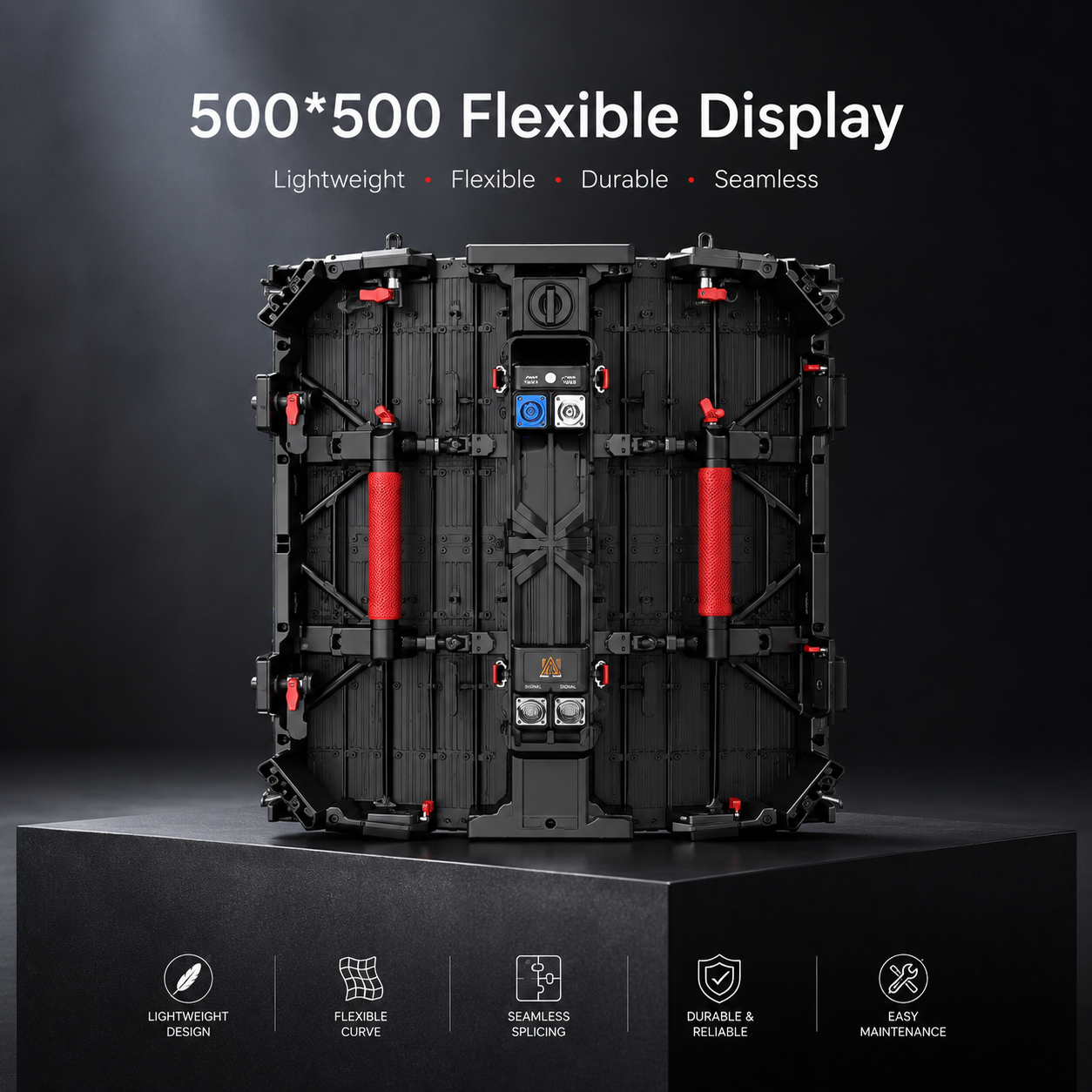

Outdoor Rental LED Display MR Series
Product Description: Flexible cabinet design supports concave & convex curves Stable visual performance even on non-flat surfaces Rental-optimized structure for repeated assembly Lightweight panels reduce transport and handling effort Indoor & outdoor configurations cover diverse event needs
Product advantages
Key Features
02
Dual-size design
Dual-size design Lightweight
design
High-brightness
Inner and outer
display
arc shape
Extremely easy
to disassemble
Modular
design
and install
design
High-brightness
Inner and outer
display
arc shape
Extremely easy
to disassemble
Modular
design
and install
03

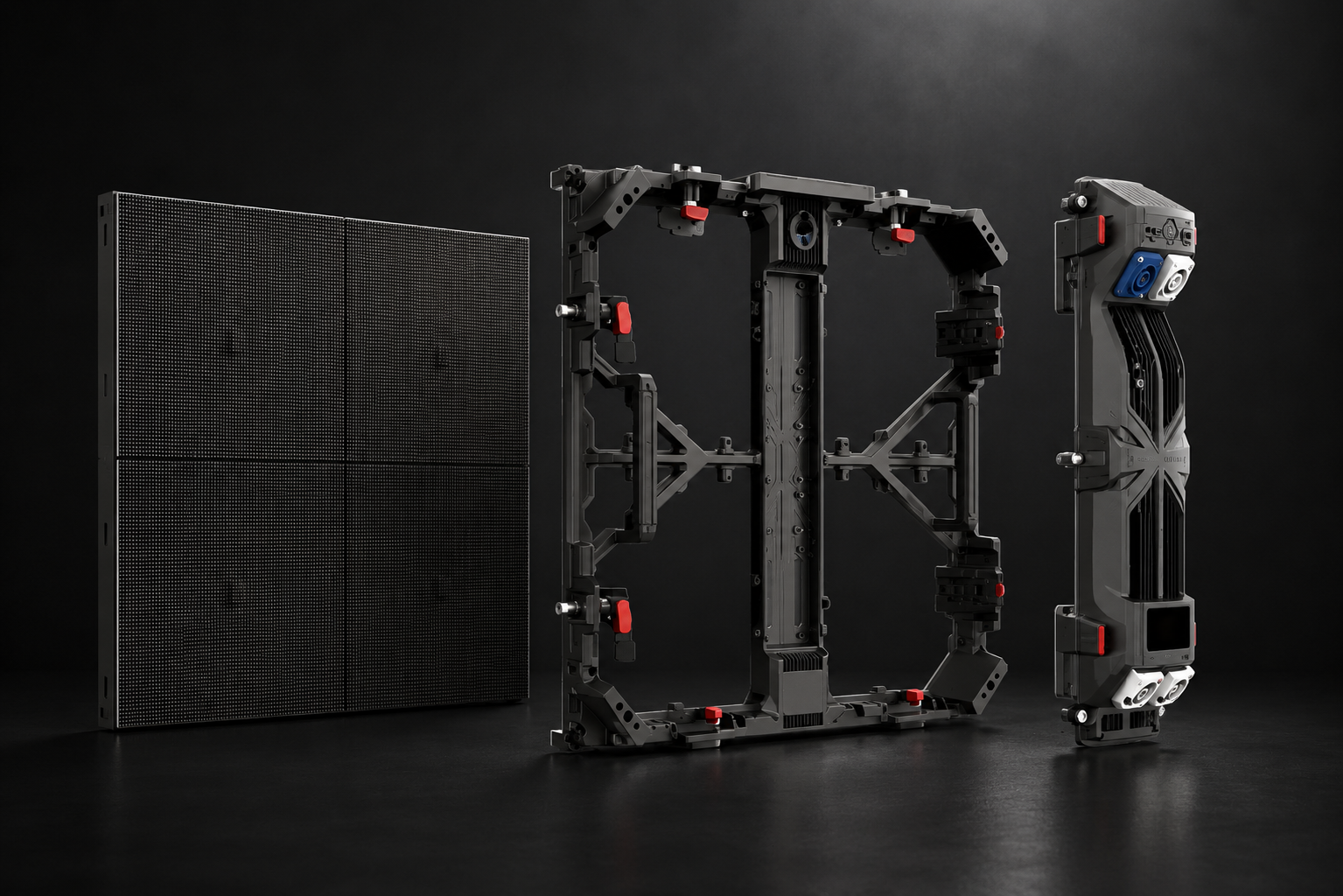

Integrated Modular Design
Egrated power box design, including power supply, receiver card, etc., can be removed by just undoing the clasp. Module adopts "magnetic suction + screw lock" double security design.
APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01
Wide Application Scenarios
02
Wide Application Scenarios
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
1.953mm / 2.604mm / 2.976mm / 3.91mm
Brightness（亮度）
>800 nits
Refresh Rate（刷新率）
≥7680 Hz (P1.95 / P2.6 / P2.97) ≥3840 Hz (P3.91)
Viewing Angle（可视角度）
Horizontal 160° / Vertical 140°
Cabinet Size（箱体尺寸）
500 × 500 × 78 mm 500 × 1000 × 78 mm
Cabinet Material（箱体材质）
Die-cast Aluminum
Cabinet Weight（箱体重量）
500×500 Cabinet：7.0kg ±0.5 500×1000 Cabinet：11.5kg ±0.5
IP Rating（防护等级）
Front IP20 / Rear IP20
Gray Scale（灰度等级）
14 Bit
Contrast Ratio（对比度）
N/A
Color Temperature（色温）
6500K
Power Consumption（功耗）
Max <580 W/m² Average <200 W/m² (P1.95 / P2.97) Average <180 W/m² (P2.6 / P3.91)
Input Voltage（输入电压）
AC100–240V (±10%)
Operating Temperature（工作温度）
-20°C ~ +50°C
Lifetime（使用寿命）
100,000 Hours
Certification（产品认证）
CE, RoHS, FCC
Warranty（保修）
3 Years
PRODUCT RESOURCES
Download Center
Download product specifications, manuals and technical resources.
DATASHEET
Product Specification Sheet
Complete technical specifications and product information.
