01

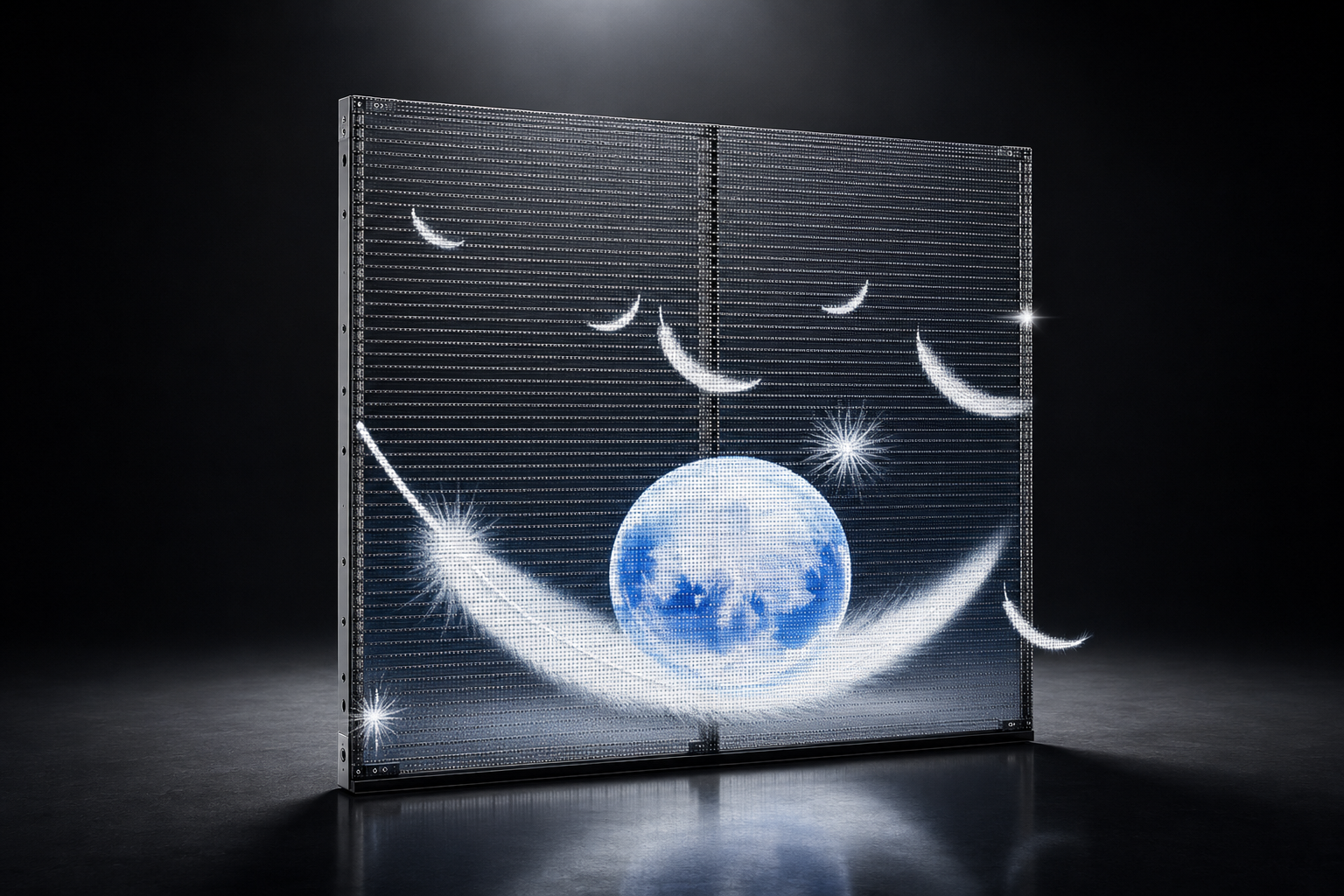

Light weight of 6kg/m2
With professional aesthetic design, the display screen is lightweight and beautiful and weighs only 6kg/m2
Transparent LED Displays

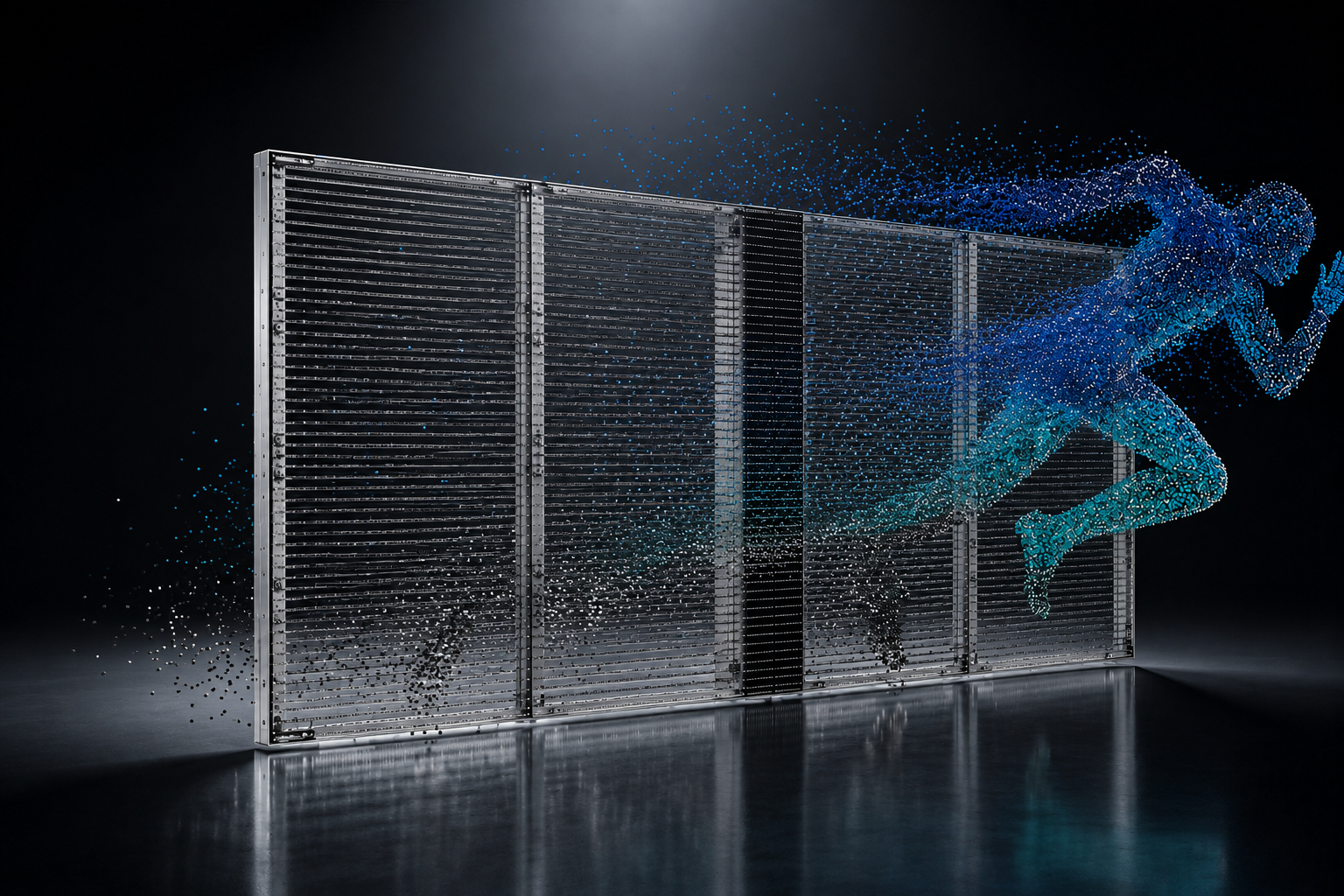

Transparent LED Displays TW series
Product Description: Delivers clear visuals while maintaining high transparency for open sightlines on glass surfaces. High refresh rate ensures smooth, flicker-free content performance. Ultra-slim and lightweight design minimizes load on glass and façades. Built for reliable, long-term operation in commercial environments.
Product advantages
Key Features
02

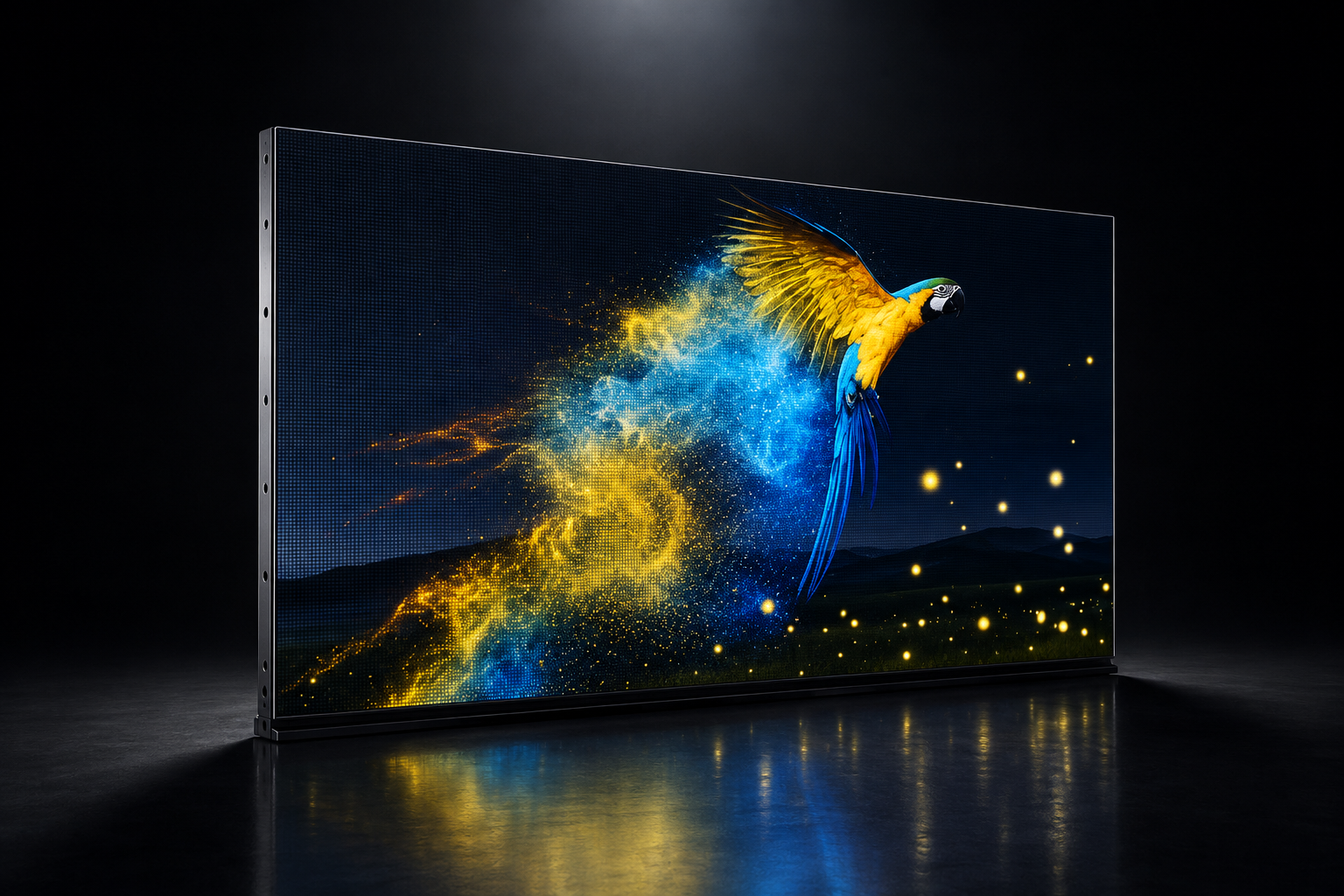

High brightness & high contrast
9,000:1 (high contrast),
5,000cd/m 2 (high brightness),
dazzling and eye-catching.
5,000cd/m 2 (high brightness),
dazzling and eye-catching.
03

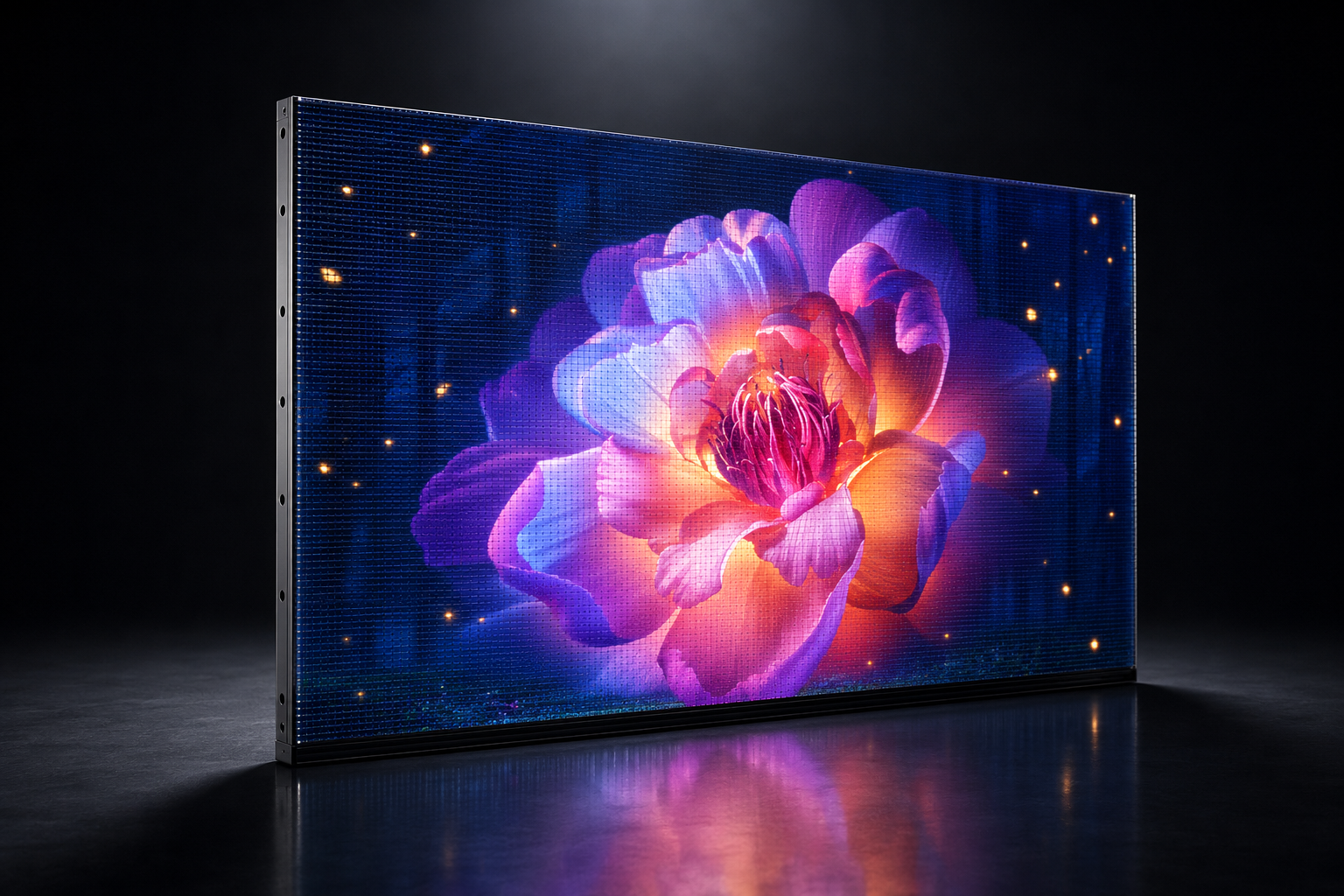

Transparent and excellent image quality
Equally spaced pixel layout for high-definition image quality; static scanning with combined diver board for table images;16bit gray scale with exquisite colors.
APPLICATIONS
Application Scenarios
Flexible display solutions designed for a wide range of professional environments.
01
Functional & Flexible
02
Functional & Flexible
TECHNICAL DATA
Specifications
Technical specifications and product performance data.
Pixel Pitch（像素间距）
LV-TW26S / LV-TW26H: H 2.6mm / V 5.2mm LV-TW39S / LV-TW39H: H 3.9mm / V 7.8mm
Brightness（亮度）
≥3000 nits
Refresh Rate（刷新率）
≥1920Hz
Viewing Angle（可视角度）
120° / 120°
Cabinet Size（箱体尺寸）
LV-TW26S / LV-TW39S: 1000 × 500mm LV-TW26H / LV-TW39H: 1000 × 1000mm
Cabinet Weight（箱体重量）
LV-TW26S / LV-TW39S: 5kg LV-TW26H / LV-TW39H: 10kg
Power Consumption（功耗）
LV-TW26S / LV-TW39S: Max. 300W / Avg. 120W LV-TW26H / LV-TW39H: Max. 600W / Avg. 240W
Input Voltage（输入电压）
AC 200–240V (±10%)
Lifetime（使用寿命）
100,000 Hours
PRODUCT RESOURCES
Download Center
Download product specifications, manuals and technical resources.
DATASHEET
Product Specification Sheet
Complete technical specifications and product information.
